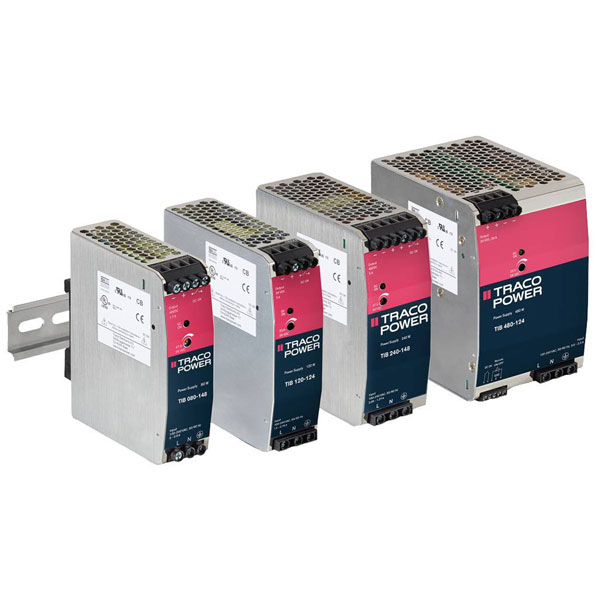

TracoPower TIB 080-148 Rail PSU +48V DC 1700mA 80W 1 Output DIN Mount

TracoPower
Order Code:

07-8232

Brand: TracoPower MPN: TIB 080-148
Qty Unit Price (Ex VAT)
1+ £88.06
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 28/12/2025

The TracoPower TIB 080-148 rail mounted PSU provides a +48.0 V DC output with a current of 1700 mA and a power rating of 80 W. It is an industrial power supply unit designed for rail mounting applications, offering reliable performance for complex electrical systems. Ideal for use in various industrial settings, it efficiently supports a single output to power essential equipment.
Type Rail mounted PSU (DIN)
Output Voltage +48.0V DC
Connection Screw terminal
Dim (L x W x H) 98.6 x 32.0 x 114.2 mm
Height 114.2mm
Input Voltage 100 - 240V AC
Input voltage (max.) 264V AC
Inputs 1 x
Length 98.6mm
Max. output current 1700mA
Max. temperature 70°C
Min. input voltage 85V AC
Min. operating temperature (derating) 60°C
Min. temperature -40°C
Number of Outputs 1
Operating temperature (max.) 70°C
Operating temperature (min.) -40°C
Output current (max.) - rounded 1.7A
Output voltage (max.) +56.0V DC
Output voltage (min.) +47.0V DC
Output voltage (nominal) +48.0V DC
Phases 1
Power 80W
Width 32.0mm
