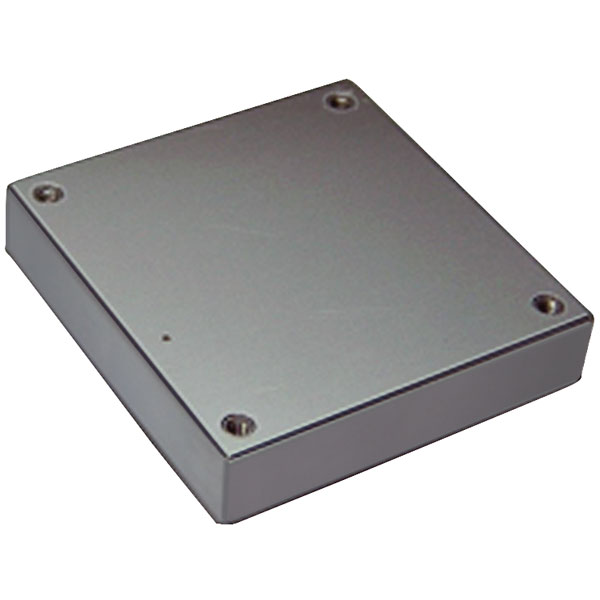

TracoPower TEP Series 75W DC-DC Converters - Single Output

The TracoPower 75W DC-DC Converters are isolated high performance DC/DC converter modules with ultra-wide 4:1 input voltage ranges that come in a rugged, sealed metal case.

Suitable for a wide range of applications, these converters are designed particularly also for industrial applications where often no PCB mounting is possible but the module has to be mounted on a chassis. Four threaded M3 inserts in the module makes chassis mount or attachment of a heatsink for optimal thermal management very simple. For easy connection there is also an unique adaptor available with screw terminals. A very high efficiency allows an operating temperature up to +60°C with natural convection cooling without power derating.

Further features include output voltage trimming, Remote On/Off and under voltage lockout, while the very wide input voltage range and reverse input voltage protection make this quality converter an interesting solution for battery operated systems.
