TracoPower TBLC 50-112 SMPSU 16V DC 4A 50W DIN-Rail Netzgerät

TracoPower
Order Code:

07-8124

Brand: TracoPower MPN: TBLC 50-112
Qty Unit Price (Ex VAT)
1+ £50.85
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 25/12/2025

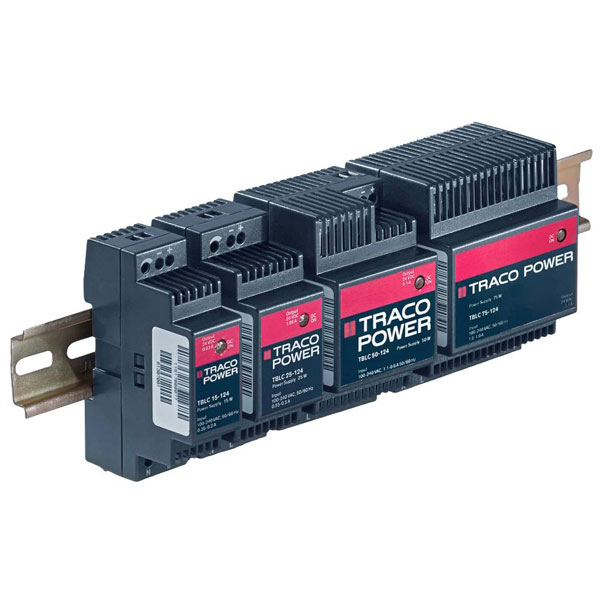

The TracoPower TBLC 50-112 is a PCB mount power supply unit with a 16 V DC output and 4 A current rating, delivering 50 W of power. This SMPSU is equipped with solder lugs, making it ideal for PCB equipping applications. Typical applications include use as a reliable power source in electronic circuits and devices mounted on printed circuit boards.
Number of Outputs 1
Output Power Max 50W
Output Voltage 12V DC
Output Current 0mA
Dimensions (L x W x H) 59.5 x 54 x 89.5 mm
Connection Screw terminal
Height 89.5mm
Input Voltage 264V AC
Length 59.5mm
Max. operating temperature (derating) 55°C
Max. output current 4A
Min. input voltage 85V AC
Misc Attribute 2 closed
Operating temperature (max.) 70°C
Operating temperature (min.) -25°C
Type SMPSU
Width 54mm
