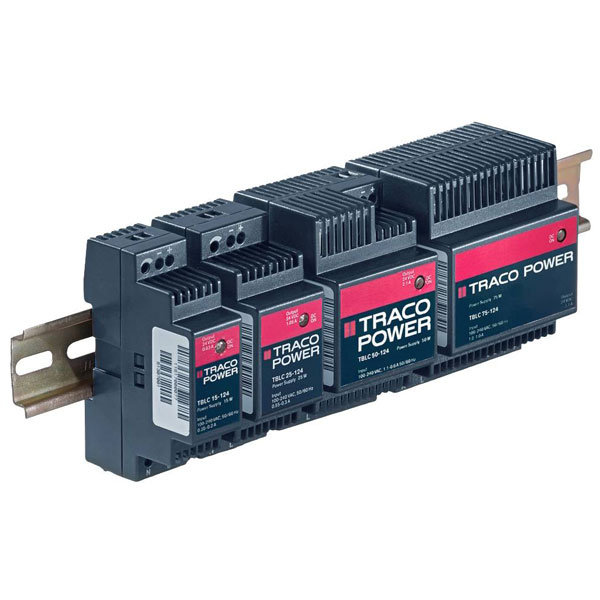

TracoPower TBLC 25-105 SMPS DIN-Rail 5.5V DC 4A 25W Compact Design

TracoPower
Order Code:

07-8121

Brand: TracoPower MPN: TBLC 25-105
Qty Unit Price (Ex VAT)
1+ £52.11
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 29/12/2025

The TracoPower TBLC 25-105 is a PCB mount power supply unit with a 5.5 V DC output at 4 A, delivering 25 W. This SMPSU is equipped with solder lugs for secure connections and is suitable for various printed circuit board applications. Ideal for industrial settings, this unit ensures reliable power distribution compatible with DIN rail systems.
Number of Outputs 1
Output Power Max 25W
Output Voltage 5V DC
Output Current 0mA
Dimensions (L x W x H) 59.5 x 36 x 89.5 mm
Connection Screw terminal
Height 89.5mm
Input Voltage 264V AC
Length 59.5mm
Max. operating temperature (derating) 55°C
Max. output current 4A
Min. input voltage 85V AC
Misc Attribute 2 closed
Operating temperature (max.) 70°C
Operating temperature (min.) -25°C
Type SMPSU
Width 36mm
