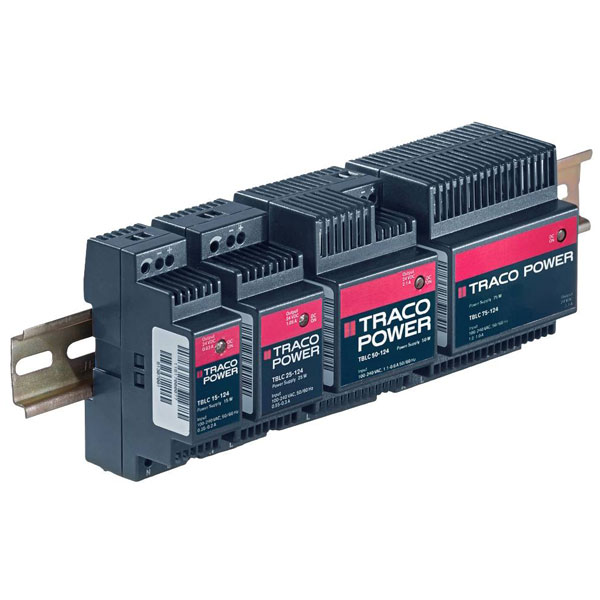

TracoPower TBLC 15-105 SMPSU 5.5V DC 2.4A 15W DIN-Rail Power Supply

TracoPower
Order Code:

07-8119

Brand: TracoPower MPN: TBLC 15-105
Qty Unit Price (Ex VAT)
1+ £47.27
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 14/12/2025

The TracoPower TBLC 15-105 is a 15 W Switch Mode Power Supply Unit (SMPSU) delivering 5.5 V DC at 2.4 A, designed for PCB mounting. It is equipped with solder lugs and is suitable for equipping printed circuit boards. This compact power supply unit is ideal for powering electronics in various industrial and consumer applications.
Connection Screw terminal
Dim (L x W x H) 59.5 x 27 x 89.5 mm
Height 89.5mm
Input voltage (max.) 264V AC
Length 59.5mm
Max. operating temperature (derating) 55°C
Max. output current 2.4A
Min. input voltage 85V AC
Misc Attribute 2 closed
Number of Outputs 1
Operating temperature (max.) 70°C
Operating temperature (min.) -25°C
Output current (max.) - rounded 2.4A
Output current (min.) 0mA
Output voltage (max.) 5.5V DC
Output voltage (min.) 5V DC
Power 15W
Type SMPSU
Width 27mm
