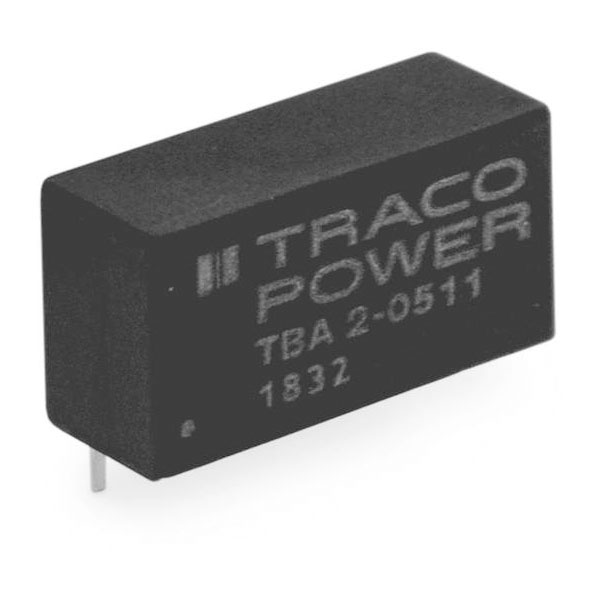

TracoPower TBA 2-0521 DC/DC converter 2W 200mA 2 outputs 1 piece

TracoPower TBA 2-0521 is a robust DC-DC converter designed to provide efficient and reliable power conversion in various applications. With a power rating of 2 watts and a maximum output current of 200 mA, this converter features dual outputs, making it suitable for projects that require multiple voltage levels. Its compact design as a print circuit converter allows for seamless integration into printed circuit boards, offering engineers flexibility in designing compact and efficient power systems. Typical applications for the TBA 2-0521 include use in telecommunications, transportation systems, and industrial automation, where dependable power conversion is critical. This converter is engineered to deliver consistent performance while adhering to strict industry standards, making it a reliable choice for professionals in need of a multi-output DC-DC conversion solution.

Connection	Solder pins
Content	1
Dimensions	(L x W x H) 19.60 x 7.60 x 10.20 mm
Efficiency (max.)	79%
Height	10.20mm
Input voltage (max.)	5.50V DC
Insulation Voltage	1500V DC
Length	19.60mm
Max. output current	200mA
Min. input voltage	4.5V DC
No. of outputs	2
Operating temperature (max.)	90°C
Operating temperature (min.)	-40°C
Output current (max.) - rounded	200mA
Power	2W
Product Type	DC/DC converter (print)
Type	TBA 2
Weight	2.80g
Width	7.60mm
