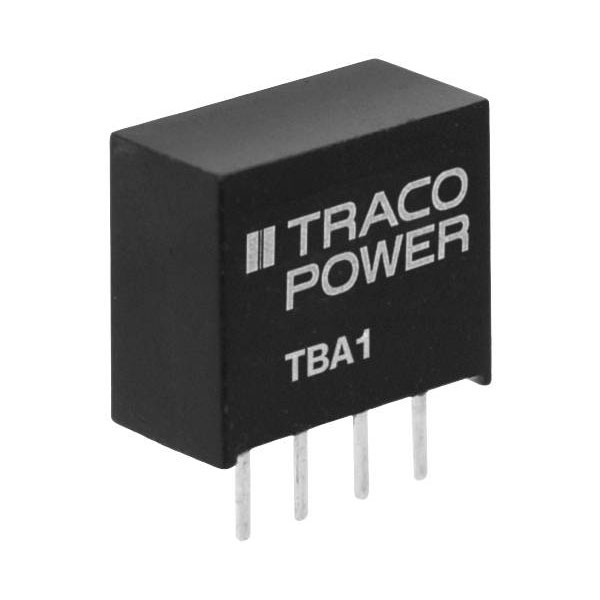

TracoPower TBA 1-1211 DC/DC converter 1W 200mA 1 output

TracoPower TBA 1-1211 is a highly efficient DC-DC converter designed to provide reliable power conversion in electronic circuits. This direct current converter delivers a power output of 1 watt with a maximum current of 200 milliamps through a single output channel. Engineered for precision, the TracoPower TBA 1-1211 supports applications requiring stable voltage conversion in compact electronic systems such as telecommunications, industrial control equipment, and instrumentation. Its robust design allows it to function effectively as a print converter, integrating directly onto printed circuit boards where space optimisation is critical. With a focus on performance and reliability, this converter is an essential component for electrical engineers dealing with power management in integrated systems.

Output Voltage	3.3V DC
Connection	Solder pins
Content	1
Dimensions	(L x W x H) 11.70 x 6 x 9.70 mm
Efficiency (max.)	79%
Height	9.70mm
Input voltage (max.)	13.20V DC
Insulation Voltage	1500V DC
Length	11.70mm
Max. output current	200mA
Min. input voltage	10.8V DC
No. of outputs	1
Operating temperature (max.)	95°C
Operating temperature (min.)	-40°C
Output current (max.) - rounded	200mA
Output voltage (max.)	5.0V DC
Output voltage (min.)	5.0V DC
Power	1W
Product Type	DC/DC converter (print)
Type	TBA 1
Weight	1.60g
Width	6mm
