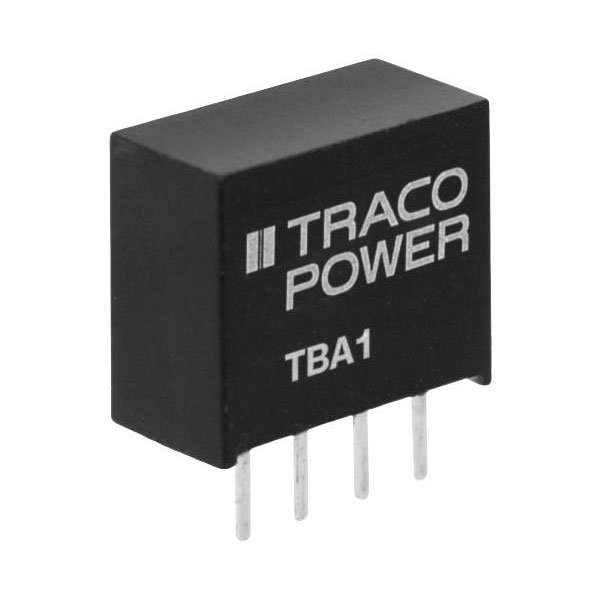

TracoPower TBA 1-0310 DC/DC converter 1 W 260 mA 1 output

TracoPower TBA 1-0310 is a robust DC-DC converter engineered specifically for applications requiring reliable voltage transformation in printed circuits. With a compact design, it offers a single output delivering 1 watt of power and supporting a current of up to 260 mA. This converter is ideal for applications where space constraints are critical, such as in telecommunications equipment, industrial automation systems, and embedded computing platforms. It ensures efficient power conversion and isolation in circuit designs, making it a vital component in the management of power distribution within complex electronic systems. The TBA 1-0310 ensures consistent performance, helping engineers to maintain equipment reliability and energy efficiency.

Output Voltage	3.3V DC
Connection	Solder pins
Content	1
Dimensions	(L x W x H) 11.70 x 6 x 9.70 mm
Efficiency (max.)	73%
Height	9.70mm
Insulation Voltage	1500V DC
Length	11.70mm
Max. output current	260mA
Maximum Input Volage	3.63V DC
Maximum Operating Temperature	95°C
Minimum Input Volage	2.97V DC
No. of outputs	1
Operating temperature (min.)	-40°C
Output current (max.) - rounded	260mA
Output voltage (max.)	3.3V DC
Output voltage (min.)	3.3V DC
Power	1W
Product Type	DC/DC converter (print)
Type	TBA 1
Weight	1.60g
Width	6mm
