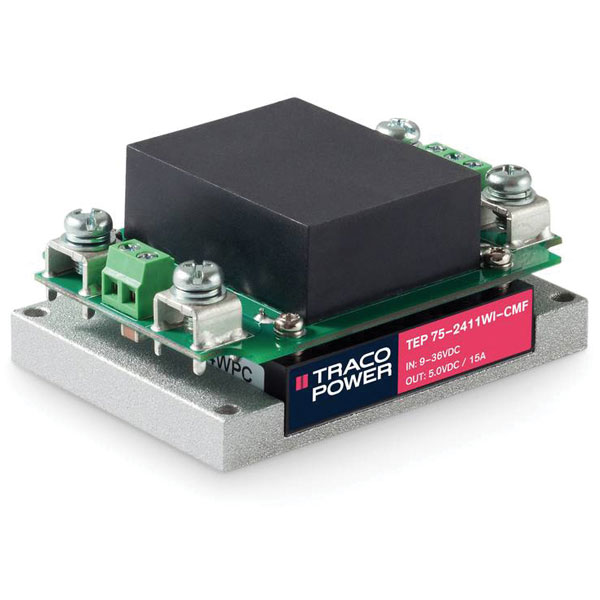

TracoPower DC-DC converters DC/DC converter (module) 615912

TracoPower Brand: TracoPower
The TracoPower converters are reliable components used for transforming voltage levels and providing electrical isolation in various applications.
Description Image Product Buy Pricing (Ex VAT) Output Voltage Input Voltage Range Output Current Power Rating Dim Efficiency (max.) Height Insulation Voltage Length Max. output current Min. input voltage Misc Attribute 1 Misc Attribute 2 Nominal Voltage Operating temperature (max.) Power Width Connection Number of Outputs Operating temperature (min.)
TracoPower TEP 75-7215WI-CMF DC/DC Converter 110V to 24V 3.2A 75W Rail Approved
TracoPower TEP 75-7215WI-CMF DC/DC Converter 110V to 24V 3.2A 75W Rail Approved
Extended range
Order code: 07-8179
MPN: TEP 75-7215WI-CMF

Available to back orderBack-order availability date - 25/05/2026
1+ £184.47
5+ £175.42
10+ £172.98
25+ £169.76
50+ £164.50
Price per unit Ex VAT 		24V DC 160V DC 3.2A 75W (L x W x H) 85 x 61 x 38.8 mm 90% 38.8mm 1600V DC 85mm 3.2A 43V DC 110V DC 75°C 75W 61mm Screw terminal 1 -40°C
TracoPower TMDC 20-4818 Converter 48V 420mA 20W 1 Output 2500V/DC Insulation
TracoPower TMDC 20-4818 Converter 48V 420mA 20W 1 Output 2500V/DC Insulation
Extended range
Order code: 07-8250
MPN: TMDC 20-4818

Available to back orderBack-order availability date - 27/04/2026
1+ £46.85
5+ £44.76
10+ £44.12
25+ £43.26
50+ £42.94
Price per unit Ex VAT 		48V DC 75V DC 420mA (L x W x H) 54 x 96 x 23.3 mm 89% 23.3mm 2500V DC 54mm 420mA 18V DC 20-4818 TMDC 48V DC 90°C 20W 96mm Screw terminal 1 -40°C
TracoPower TMDC 40-2415 Converter 24VDC 1.67A 40W 1 Output 2500V Isolation
TracoPower TMDC 40-2415 Converter 24VDC 1.67A 40W 1 Output 2500V Isolation
Extended range
Order code: 07-8253
MPN: TMDC 40-2415

Available to back orderBack-order availability date - 27/04/2026
1+ £50.53
5+ £49.01
10+ £47.50
25+ £47.14
50+ £46.78
Price per unit Ex VAT 		24V DC 36V DC 1.67A (L x W x H) 63.8 x 112 x 25.6 mm 90% 25.6mm 2500V DC 63.8mm 1.67A 9V DC 40-2415 TMDC 24V DC 85°C 40W 112mm Screw terminal 1 -40°C
