Tiger Power Supplies TP1166 12V DC 7.5A 90W Desktop Power Supply 2.1mm C14

Tiger Power Supplies
Order Code:

85-7781

Brand: Tiger Power Supplies MPN: TP1166
Qty Unit Price (Ex VAT)
1+ £25.93
3+ £24.55
5+ £22.95
10+ £21.37
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
6 in stock, despatched same dayAdditional quantity lead time 6 months

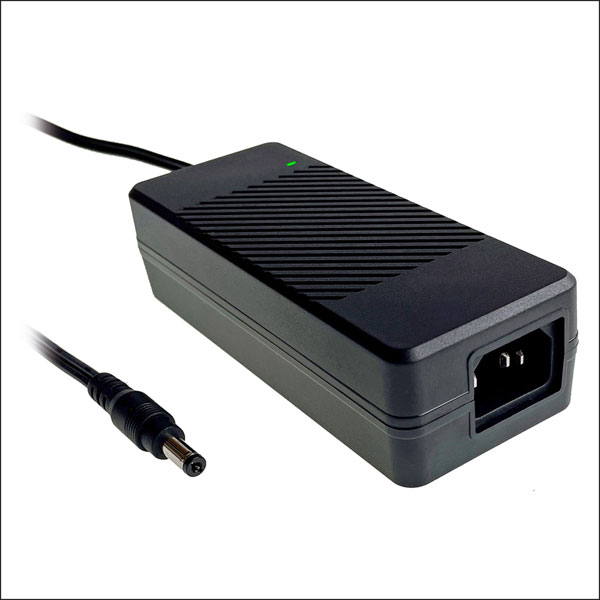

Tiger Power Supplies TP1166, 12V DC, 7.5A, 90W desktop power supply, featuring a standard 3-pin IEC320 C14 input and a 1.5m captive lead with a 2.1 x 5.5 x 12mm female, centre positive DC connector.

The PSU provides a reliable single voltage regulated output and is suitable for a wide range of applications.


  • Input Voltage: 100VAC to 240VAC (90VAC to 264VAC max.)
  • Maximum Power: 90W
  • Output Voltage: 12V DC
  • Class I, 3-pin C14 input design
  • Compact size and low profile
  • Short circuit, over voltage and over current protection
  • Energy Efficiency Level VI
  • High MTBF
  • Safety Specifications: Approved to EN62368-1 Safety Standards, including CE, UKCA, UL, CUL, FCC, CB

The input voltage is via a IEC320-C14 inlet (cable not supplied).


Type Desktop Power Supply
Output Voltage 12V DC
Output Current 7.5A
Power Rating 90W
Cord Length 1.5m
Dimensions 135.4 x 54.9 x 35mm
Input Connector C14
Output Connector 2.1 x 5.5 x 12mm female
Supply Voltage Range 100 to 240V AC
