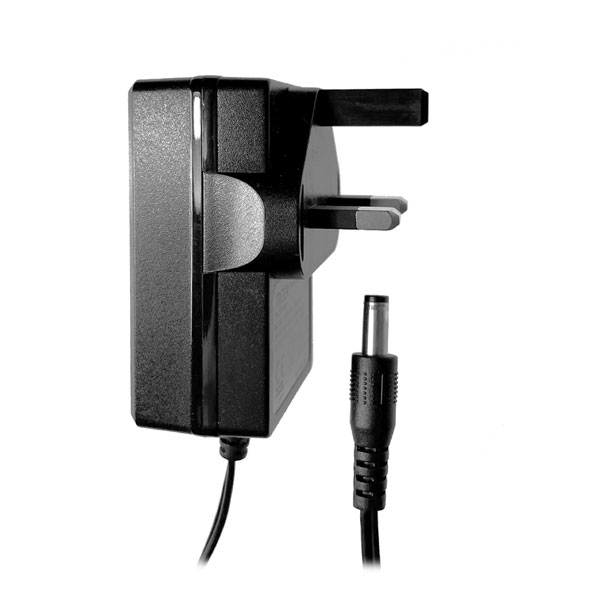

Tiger Power Supplies TP1129 24vdc 1A 24W UK power supply 2.1mm

Standard range
Order Code:

85-7714


Brand: Tiger Power Supplies MPN: TP1129 EAN-13: 5060892270672 PCB Symbol, Footprint or 3D Model
Qty Unit Price (Ex VAT)
1+ £7.88
3+ £7.65
5+ £7.22
10+ £6.73

Add to Quote

Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
31 in stock, despatched same dayAdditional quantity lead time 7 days

Tiger Power Supplies TP1129, 24VDC, 1A, 24W power supply has a 100-240V AC input. It comes complete with a UK fixed 3-pin AC input plug. The power supply provides a single voltage regulated output and is fitted with a 1.5m captive lead with a 2.1 x 5.5 x 12mm female, centre positive DC connector.

The power supply features full safety approvals to EN62368-1 world safety standards, including CE and UKCA and also meets level VI energy efficiency requirements. Its compact design makes it suitable for a wide range of applications.


  • Input Voltage: 100VAC to 240VAC (90VAC to 264VAC max.)
  • Maximum Power: 24W
  • Output Voltage: 24V DC
  • Output Current: 1A
  • UK 3-Pin Plug Connector
  • Compact size
  • Short circuit and over voltage protection
  • Energy Efficiency Level VI
  • Safety Specifications: Approved to EN62368-1 Safety Standards
AC Input Plug Nationality UK
Cord Length 1.5m
Dimensions 59 x 48 x 29mm
Output Connector 2.1 x 5.5 x 12mm female barrel
Output Current 1A
Output Voltage (DC) 24V
Polarity Centre positive
Power Rating 24W
Supply Voltage Range 100 to 240V AC
Type UK Plug Power Adapter
