Tiger Power Supplies TP1128 5vdc 3A UK EU USA AU power supply 2.1mm

Tiger Power Supplies
MPN
TP1128
EAN-13
5060892270375
Order Code
85-7713
Country of Origin
China
Qty Unit Price (Ex VAT)
1+ £9.21
3+ £8.96
5+ £8.44
10+ £7.88
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
30 in stock, despatched same dayAdditional quantity lead time 6 months

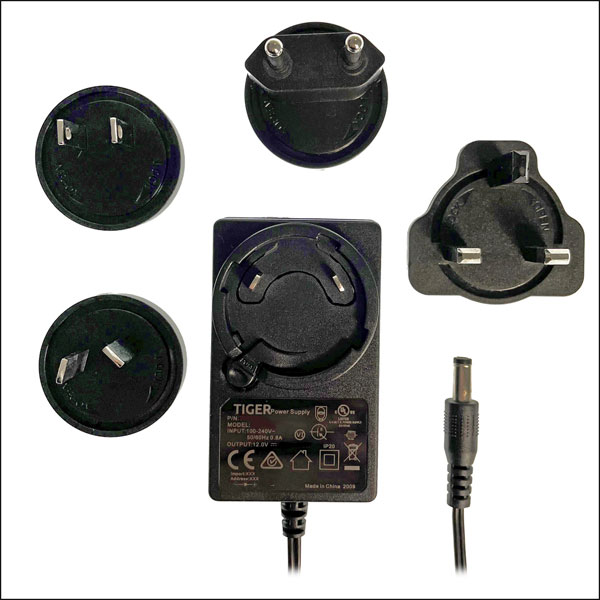

Tiger Power Supplies TP1128, 5VDC, 3A, 15W power supply has a 100-240V AC input. It comes complete with four interchangeable UK, European, USA and Australian AC Input pins as standard. The power supply provides a single voltage regulated output and is fitted with a 1.5m captive lead with a 2.1 x 5.5 x 12mm female, centre positive DC connector.

The power supply features full safety approvals to EN62368-1 world safety standards, including CE, UKCA, UL, SAA, C-Tick and also meets level VI energy efficiency requirements. Its miniature design makes it suitable for a wide range of applications.


  • Input Voltage: 100VAC to 240VAC (90VAC to 264VAC max.)
  • Maximum Power: 15W
  • Output Voltage: 5V DC
  • Output Current 3A
  • 4 Interchangeable AC Pin Connectors
  • Short Circuit and Over Current protection
  • Energy Efficiency Level VI
  • High MTBF
  • Safety Specifications: Approved to EN62368-1 Safety Standards, including CE, UKCA, UL, SAA, C-Tick
Type Multi Head Power Adapter
Output Voltage 5V DC
Output Current 3A
AC Input Plug Nationality AUS, Euro, UK, USA
Cord Length 1.5m
Dimensions 59 x 40.9 x 26.4mm
Output Voltage (DC) 5V
Plug Type 2.1 x 5.5 x 12mm female barrel
Polarity Centre positive
Power Rating 15W
Supply Voltage Range 100 to 240V AC
Weight 150g
