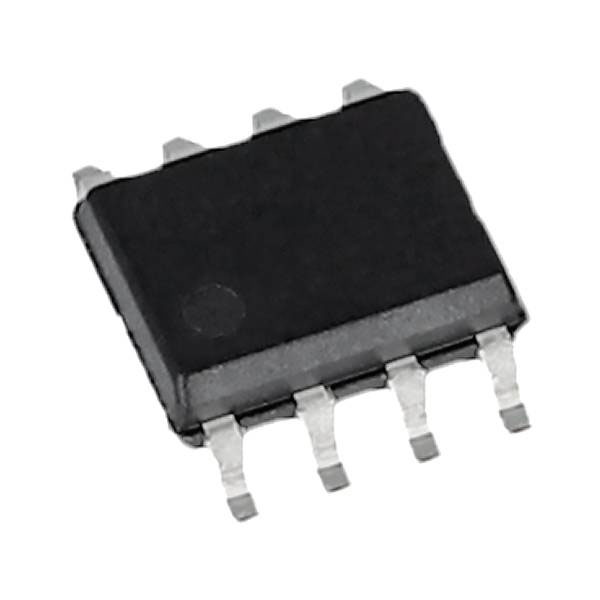

Texas Instruments ADS7822UB ADC 12-bit single-channel low-power data converter

Texas Instruments ADS7822UB, also known by its alternate description as 2993298, is designed as a 12-bit, single-channel, low-power analogue-to-digital converter (ADC). This device features a versatile performance with a low power consumption of 2.3 mW at a sampling rate of 200 kSPS, making it ideal for portable and battery-operated systems. Its small footprint and SPI-compatible serial interface facilitate easy integration into compact or space-constrained applications. Among its typical uses are precision measurement systems, data acquisition modules, and industrial automation solutions, where high conversion accuracy and power efficiency are paramount.

Logic IC Function	12-bit ADC
Operating Temperature Range	-40 to +85°C
Package/Case	SOIC (D)
Mounting Type	PCB mount
Operating temperature (max.)	85°C
Operating temperature (min.)	-40°C
Series	ADS7822
Type	Data acquisition IC - AD converter (ADC)
