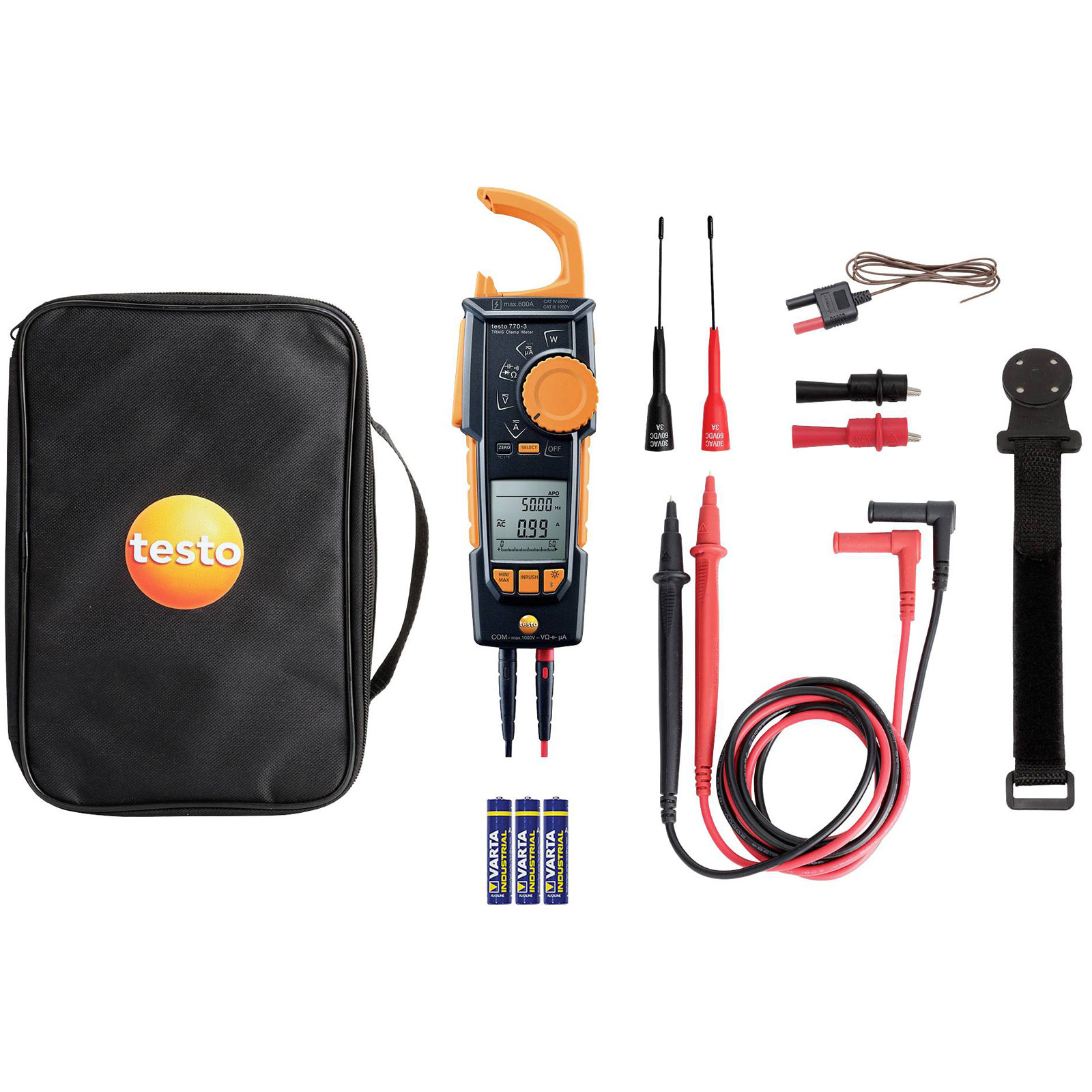

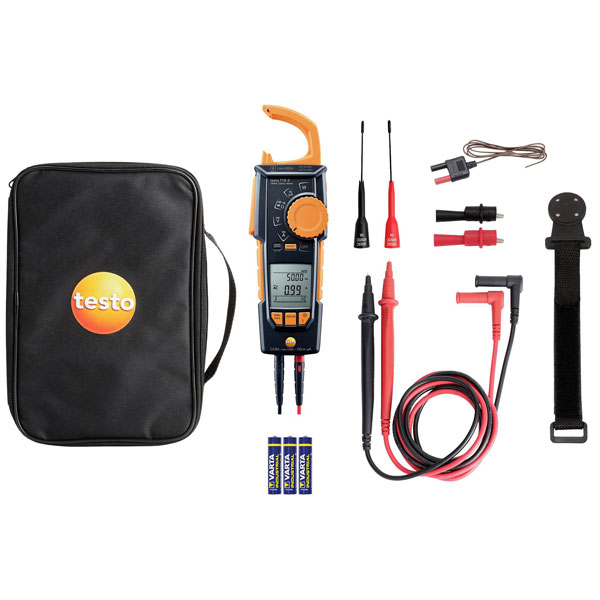

Testo 0590 7703 03 770-3 Clamp meter Digital CAT III 1000V True RMS Auto AC/DC

The Testo 0590 7703 03 770-3 Clamp Meter is a high-performance digital multimeter designed for professional use in electrical testing. Featuring True RMS technology and being CAT III 1000V rated, it provides accurate voltage, current, and frequency measurements in both AC and DC applications. This versatile tool is ideal for electricians and engineers requiring reliable and precise readings for diagnostics and maintenance across various electrical systems.

Type	Clamp meter
Calibrated	Manufacturer's standards (no certificate)
A AC reading range (min.)	0.1A
A DC reading range (max.)	600A
AC resistance	11MΩ
Amperage reading range AC (max.)	600A
Amperage reading range DC (min.)	0.1A
Current reading	AC/DC
Dc Resistance	11MΩ
Dim	(L x W x H) 249 x 96 x 43 mm
Display	Digital
Display (counts)	6000
Frequency reading range	0.01 Hz - 9999kHz
Height	43mm
Length	249mm
Measurement type (details)	True RMS
Misc Attribute	770-3
Power supply (details)	3 micro batteries (AAA)
Reading range - capacity	2 nF - 60mF
Reading range - resistance	0.01 MΩ - 60MΩ
Temperature reading range (max.)	+500°C
Temperature reading range (min.)	-20°C
V AC reading range (max.)	600V
V AC reading range (min.)	1mV
Voltage DC reading range (max.)	600V
Voltage metering	AC/DC
Voltage reading range DC (min.)	1V
Width	96mm
