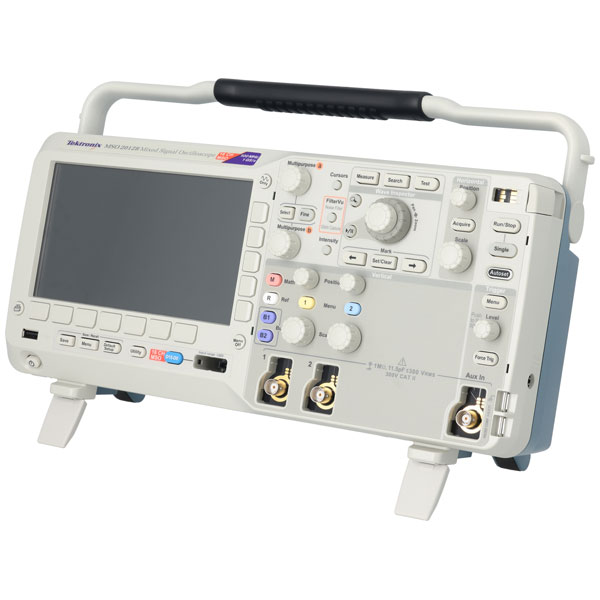

Tektronix MSO2012B 2-Channel Oscilloscope

The MSO2012B offers up to 100MHz bandwidth and 1GS/s sample rate. This oscilloscope from Tektronix delivers advanced debug features at an entry-level price. Quickly find and diagnose problems in complex designs with up to 20 channels for analyzing analogue and digital signals.

With a deep record length of 1M points standard on all channels, the MSO2012B lets you capture long windows of signal activity while maintaining fine timing resolution.

• Accuracy: ±3%
• Bandwidth: 100MHz
• Channel type: 2
• Dimensions: 134(L) x 377(W) x 180(H)mm
• Displays: TFT 112 320, TEE colours
• Input coupling: AC, DC, GND
• Input impedance: 1MΩ; 11.5pF
• Input voltage range: 300 V (DC + peak AC)
• Interfaces: 1x USB 2.0
• Memory depth: 1Mpts
• Power supply: 100 - 240V AC
• Resolution: 8-Bit
• Sampling rate: 1GS/s
• Screen size: 17.8cm (480 x 234 Pixel)
• Timebase range: 4ns/DIV - 100s/DIV
• Triggering: Edge, pulse, runt, logic, video, rise/fall time
• Type (manufacturer type): MSO2012B
• Vertical deflection: 2mV/DIV – 5 V/DIV
