TE Connectivity FSM8JAH Tactile Switch 6MM High Tact Switch

Inc VAT

Qty	Unit Price (Ex VAT)
2250+	£0.128

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 2250

Despatched within 5 working days - 23,250 in stock

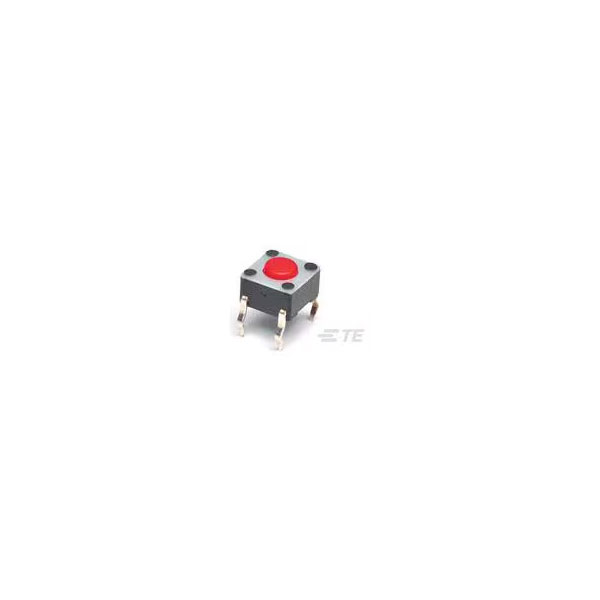

TE Connectivity's FSM8JAH is a tactile switch with a 6 mm high actuator.

It provides reliable tactile feedback essential for user interface applications.

The switch is ideal for consumer electronics and communication devices.

Its durability and compact design ensure longevity and efficient performance.

Type	Tactile Switch
Switch Function	Off-Mom
Current Rating (A)	50mA
Orientation	Vertical/ Top Actuator
Actuator Length	3.15mm
Outline Dimensions	(L x W) 6 mm x 6 mm
Illumination	None
Operating Force	260gf
Actuator Material	PBT, Polybutylene
Actuator Type	Standard
Illumination Type	Non-Illuminated
Maximum Operating Temperature	85°C
Mechanical Life	100000Cycles
Minimum Operating Temperature	-35°C
Mount	Through Hole
Package Quantity	30000
Packaging	Bulk
RoHS Compliant	Yes
Series	FSMJ
Switch Travel	0.25mm
Termination	PC Pin
Throw Configuration	SPST
