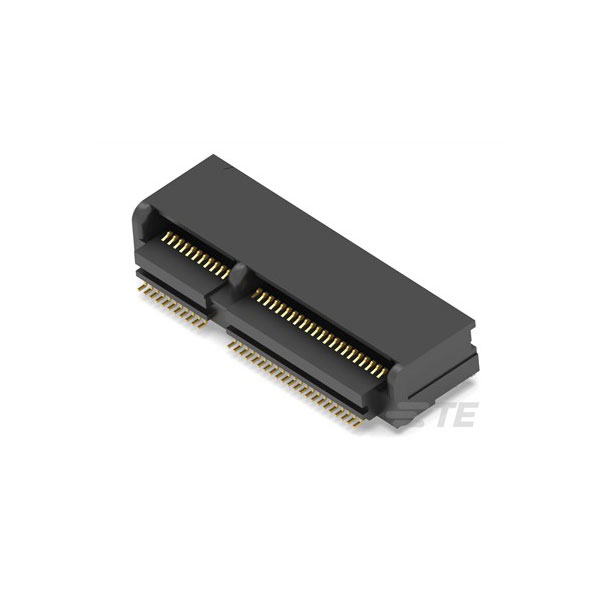

TE Connectivity 2199230-4 Card Edge Connector Female 67 Contacts 2 Rows

MPN: 2199230-4
Brand: TE Connectivity
Order Code: 14-6720
Country of Origin: China

RoHS Compliant

Inc VAT

Qty	Unit Price (Ex VAT)
1000+	£1.25

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 1000

Despatched within 5 working days - 1,000 in stock

Product Details
Quick Quote

TE Connectivity, 2199230-4, is a card edge connector featuring 67 female contacts arranged in two rows.

This part is engineered for reliable signal transmission and durable connections.

It is commonly used in printed circuit boards for data and electronic applications.

The connector supports high-speed data transfer and secure connectivity.

Type	M.2 Connectors
Centerline (Pitch)	0.508mm
Circuit Application	Power
Connector & Contact Terminates To	Printed Circuit Board
Connector & Keying Code	E
Connector Height	0.16500000000000001
Connector Length	0.86199999999999999
Connector Mounting Type	Board Mount
Connector System	Board-to-Board
Connector Width	0.34300000000000003
Contact Base Material	Copper Alloy
Contact Current Rating (Max)	0.5
Contact Mating Area Plating Material	Gold (Au)
Contact Mating Area Plating Material Thickness	15.0
Eccn Code	EAR99
Housing Material	High Temperature Thermoplastic
HTS Code	8536.69.40.40
Military Spec	True
Number of Positions	67
Number of Rows	2
Operating Temperature Range	-40 – 185
Operating Voltage	50
Packaging Method	Tape & Reel
PCB Contact Termination Area Plating Material	Gold Flash
PCB Contact Termination Area Plating Material Finish	Matte
PCB Mount Orientation	Right Angle
Primary Product colour	Black
REACH	Compliant
ROHS	Yes
Termination Method to PCB	Surface Mount
