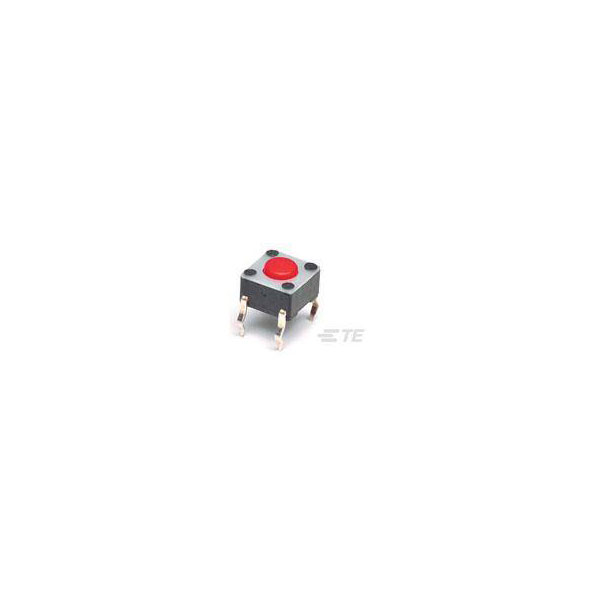

TE Connectivity 1825910-7 AMP Tactile Switch High Temp 6mm 1 pc Package

TE Connectivity manufactures the 1825910-7 TE AMP Tactile Switch, offering reliable performance in a compact single-piece package. This switch is designed for applications requiring tactile feedback, ideal for use in consumer electronics, industrial controls, and communication devices. Its durable construction ensures longevity and reliability in various operational environments.

Type	Tactile Switches
Contact Configuration	SPST
Switch Function	Off-Mom
Current Rating (A)	50mA
Orientation	Vertical/ Top Actuator
Actuator Length	0.055inch
Outline Dimensions	(L x W) 6 mm x 6 mm
Illumination	None
Operating Force	260gf
Actuator Colour	Red
Actuator Material	PBT
Actuator Type	Standard
Colour	Black
Contact Base Material	Copper Alloy
Contact Material	Copper Alloy
Contact Plating	Silver
DC Rated Voltage	24v
Depth	7.8mm
Electrical Life	100000Cycles
ELV	Compliant
Illumination Type	Non-Illuminated, Illuminated
Length	5.99mm
Max Voltage Rating (DC)	24v
Maximum Operating Temperature	85°C
Mechanical Life	100000Cycles
Minimum Operating Temperature	-35°C
Misc Attribute	TE AMP Tactile Switches
Mount	Through Hole
Number of Positions	2
Operating Temperature Range	-40 – 105
Operating Voltage	24
Packaging	Loose Piece
Packaging Method	Loose Piece
Packaging Type	Package
Product Height	.196
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Series	FSMJ
Switch Travel	0.25mm
Termination	PC Pins
Throw Configuration	SPST
