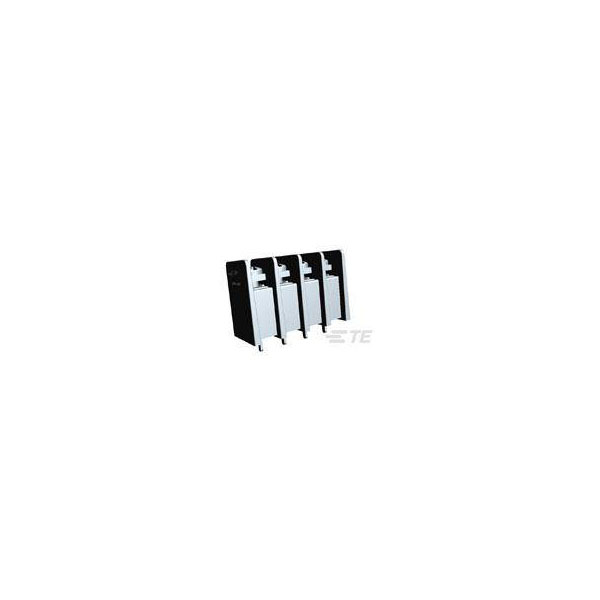

TE Connectivity 1546734-4 Barrier Terminal Block 4P High-Rise Dual

TE Connectivity's 1546734-4 is a barrier style terminal block designed for secure electrical connections. It features robust construction and reliable performance for use in industrial and commercial applications. Typical applications include power distribution and circuit protection in electrical installations.

Type	TE AMP Barrier Style Terminal Blocks
Number of Circuits	4
Pitch	8.26mm
Current Rating	20A
Colour	Black
ELV	Compliant
Flammability Rating	UL94 V-0
Housing colour	Black
Insulation Material	Nylon
Length	1.375inch
Max Voltage Rating (AC)	300v
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Misc Attribute	TE AMP Barrier Style Terminal Blocks
Mount	Through Hole
Mounting Ears	No (Without)
Mounting Insert	No (Without)
Number of Contacts	4
Number of levels	1
Number of Positions	4
Number of Rows	1
Number of Wire Entries	4
Orientation	Straight
Package Quantity	200
Packaging	Carton
Packaging Type	Carton
Radiation Hardening	No
RoHS Compliant	Yes
Series	Buchanan
Terminal Finish	Zinc
Terminal Material	Brass
Termination	Solder
Voltage	300v
Voltage Rating	300v
Wire Gauge	22AWG
Wire Gauge (Min)	12AWG
