TDK-Lambda KMS60A-24 KMS-A AC/DC PSU 24V 2.5A 60W Medical Approved

TDK-Lambda
Order Code:

10-7636

Brand: TDK-Lambda MPN: KMS60A-24 EAN-13: 2050006628096
Qty Unit Price (Ex VAT)
1+ £81.92
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
1 in stock, despatched in 4 working days

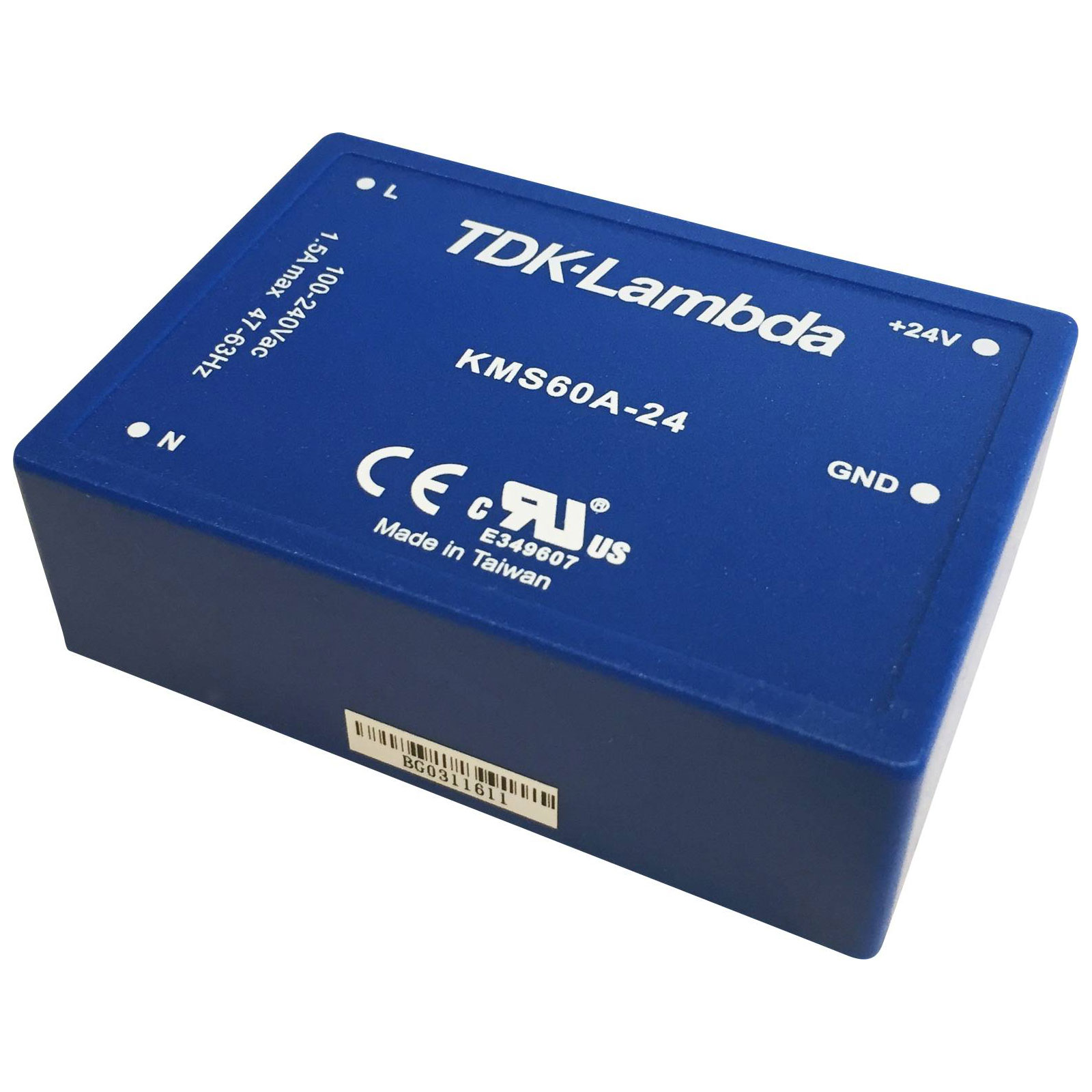

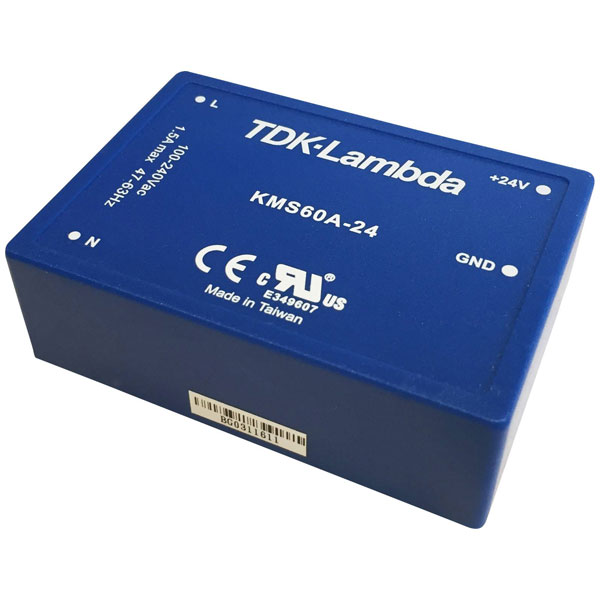

The TDK-Lambda KMS60A-24 is a 24 V, 2.5 A, 60 W AC/DC printed circuit board power supply unit. It is designed for easy PCB mounting and comes equipped with solder lugs for secure installation. This reliable and compact PSU is ideal for use in various electronic applications requiring efficient and stable power delivery.
Number of Outputs 1
Output Power Max 60W
Output Voltage 24V
Output Current 2.5A
Mounting Type PCB
Cooling Convection
Dimensions (L x W x H) 89 x 63.5 x 27 mm
Height 27mm
Input Single-phase
Input Voltage Range[AC] / Vac 90 to 264
Input Voltage Range[DC] / Vdc 120 to 370
Length 89mm
Max. output current 2.5A
Operating temperature (max.) 80°C
Operating temperature (min.) -40°C
Option Class II input
Output Power / W 60
Output Voltage Range[DC] / Vdc Fixed
Package / Mounting PCB mount
Protection Class II
Rated Output Voltage[DC] / Vdc 24
Series KMS-A
SPEC ADDED KMS-A,PCB mount-Single-phase, Convection, 90 to 264 AC,Class II input,Fixed Vdc
Type AC/DC PSU (print)
Width 63.5mm
