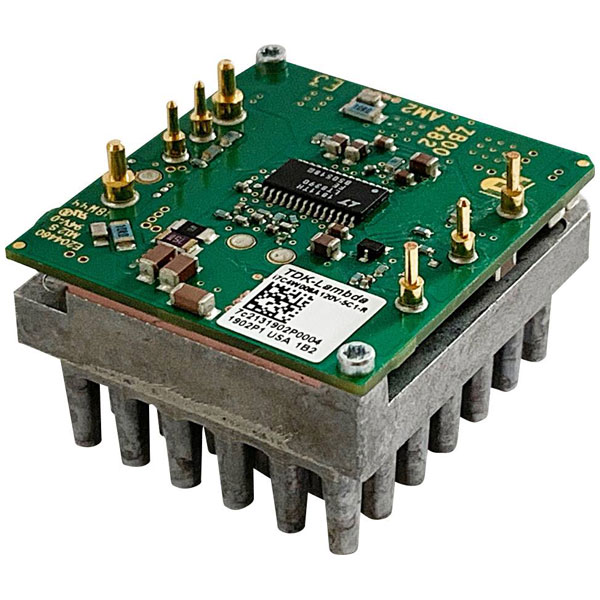

TDK-Lambda i7C i7C4W008A120V-0F1-R DC/DC Converter 8A 300W 9.6-48V Output

The TDK-Lambda i7C4W008A120V-0F1-R is a high-performance DC/DC converter capable of delivering 8 A and 300 W. This converter is ideal for converting direct current in various electronic applications, providing reliable power efficiency and stability. It is commonly used in telecommunications, data communications, and industrial equipment where precise power conversion is critical.

Output Voltage	9.6V
Power Rating	300 W
Output Current	8A
Dim	(L x W x H) 36.8 x 34 x 24.9 mm
Efficiency (max.)	97%
Height	24.9mm
Industry Standard Size	1/16 brick size
Input Voltage Range	53V
Input Voltage Range[DC] / Vdc	9 to 53
Isolation	Non-isolated
Length	36.8mm
Max. output current	8A
Maximum Operating Temperature	125°C
Maximum Output Current / A	8
Maximum Output Power / W	300,PCB mount, 300W, 9.6 to 48V
Minimum Input Volage	9V
Nominal Input Voltage[DC] / Vdc	24/48,Non-Isolated, Step-down/Step-down
Number of Outputs	1.0
Operating temperature (min.)	-55°C
Option	With heatsink
Output Voltage Range[DC] / Vdc	9.6 to 48
Package / Mounting	PCB mount
Power	300W
Series	i7C,Power Supplies, Sources and Loads
Terminal Style	DC-DC Converters,Through Hole
Type	DC/DC converter
Weight	64g
Width	34mm
