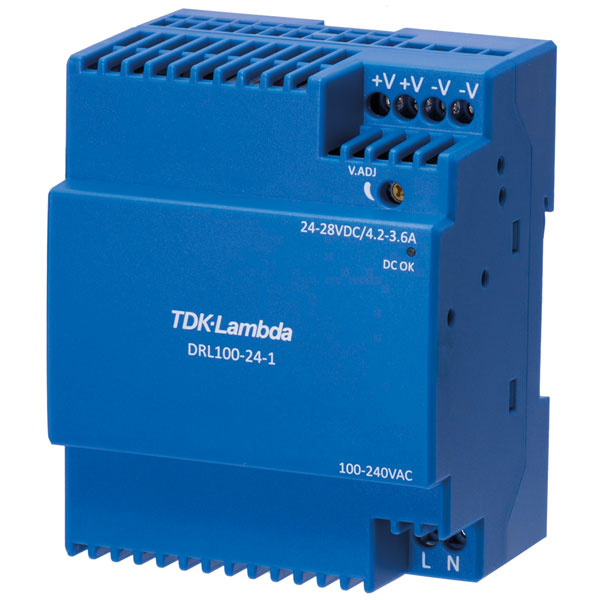

TDK-Lambda DRL100-24-1 DRL Series DIN Rail PSU 24V 3.67A 100.8W 1 piece

The TDK-Lambda DRL100-24-1 is a rail-mounted power supply unit providing 24 V and 3.67 A, with a power output of 100.8 W. It is typically used in industrial applications where reliable and efficient power distribution is required. This DIN rail power supply unit is designed for easy integration into electrical panels and systems.

Type	Rail mounted PSU (DIN)
Nominal value output current 1	3.67A
Number of Outputs	1
Power Rating	100W
Cooling	Convection
Depth	55.6mm
Dimensions (L x W x H)	55.6 x 72 x 91mm
Height	91mm
Input	Single-phase
Input Voltage Range[AC]	85 to 264
Max. output current 1	3.67A
Maximum input voltage [AC]	264V
Maximum Operating Temperature	71°C
Maximum Temperature	85°C
Min. temperature	-40°C
Nominal value output voltage 1	24V
Operating temperature (min.)	-25°C
Output power/rating	100.8
Output Voltage Range[DC]	24 to 28
Package / Mounting	DIN rail
Rated Output Voltage[DC]	24V
Series	DRL
SPEC ADDED	DRL,DIN rail-Single-phase, Convection, 85 to 264 AC,,24 to 28 Vdc
Weight	280
Width	72mm
