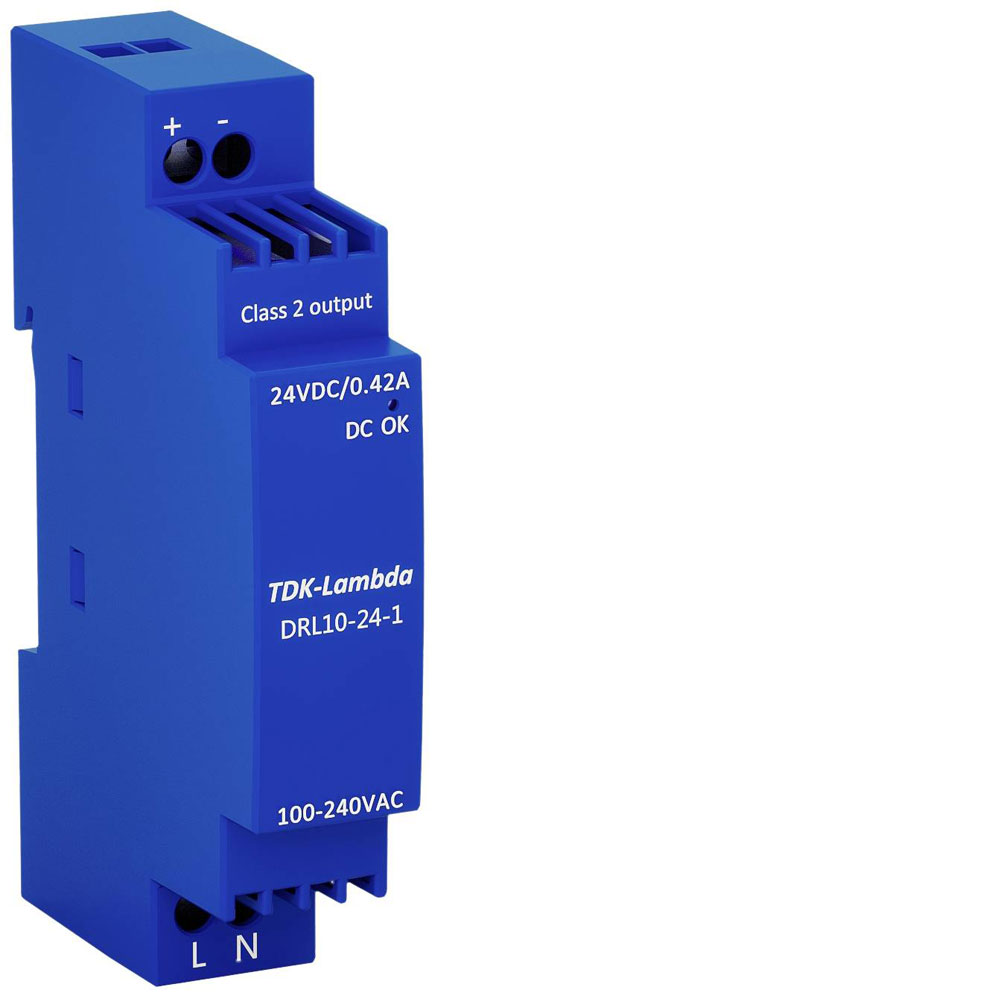

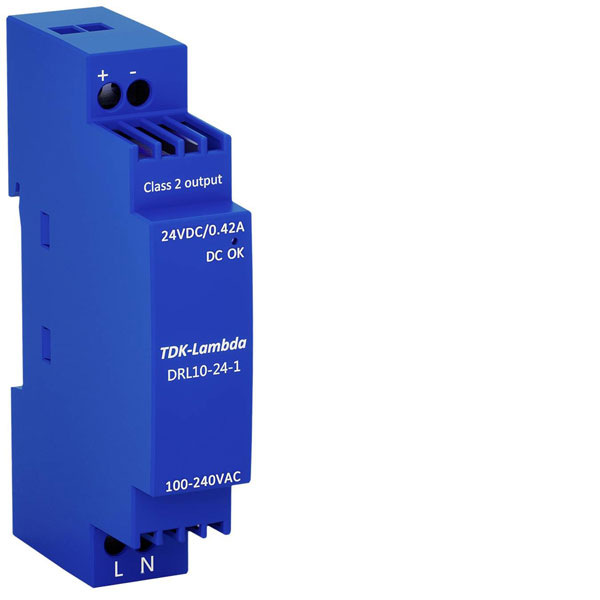

TDK-Lambda DRL10-24-1 DRL10 Rail PSU 24V 0.42A 10W DIN Rail Mounted

TDK-Lambda
Order Code:

10-7599

Brand: TDK-Lambda MPN: DRL10-24-1 EAN-13: 4053199910427
Qty Unit Price (Ex VAT)
1+ £29.40
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
44 in stock, despatched in 4 working days

The TDK-Lambda DRL10-24-1 is a rail mounted power supply unit featuring a 24V output at 0.42A, delivering a total of 10W. This DIN rail PSU is ideal for industrial applications, providing reliable power in compact installations. Common uses include integration into control panels or automation systems.
Type Rail mounted PSU (DIN)
Output Voltage 24V
Output Current 420mA
Number of Outputs 1
Power Rating 10W
Cooling Convection
Dim (L x W x H) 55.6 x 18 x 91 mm
Height 91mm
Input Single-phase
Input voltage (max.) 264V AC
Input Voltage Range[AC] / Vac 85 to 264
Length 55.6mm
Max. output current 0.42A
Max. temperature 85°C
Min. input voltage 85V AC
Min. temperature -40°C
Operating temperature (max.) 71°C
Operating temperature (min.) -25°C
Option Comply with Class 2 output per UL1310
Output Power / W 10
Output Voltage Range[DC] / Vdc Fixed
Package / Mounting DIN rail
Rated Output Voltage[DC] / Vdc 24
Series DRL
SPEC ADDED DRL,DIN rail-Single-phase, Convection, 85 to 264 AC,Comply with Class 2 output per UL1310,Fixed Vdc
Width 18mm
