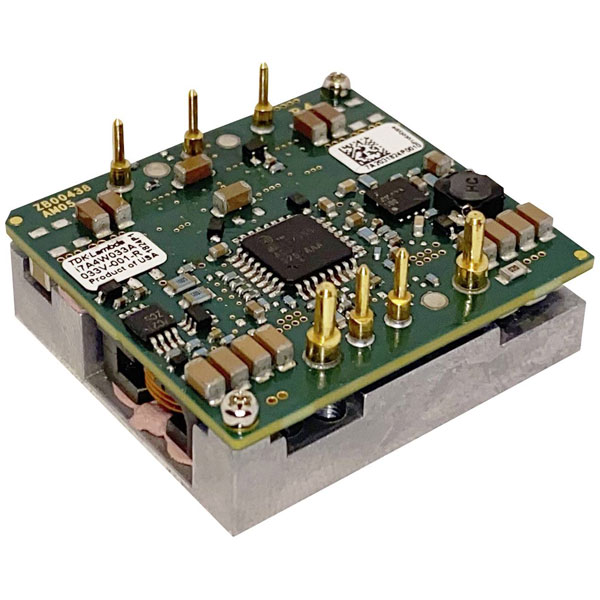

TDK i7A4W033A033V-0C1-R i7A DC/DC Converter 500W 5V/33A High Efficiency

The TDK i7A4W033A033V-0C1-R is a DC/DC converter that provides efficient conversion with an input and output of 5 V DC, and an output of -5 V DC at 33 A, delivering up to 500 W of power. It is typically used in applications requiring reliable power management and distribution, such as telecommunications, computer systems, and industrial automation. With its robust design and high current capacity, it supports diverse and demanding electrical environments.

Output Voltage	3.3V DC
Input Voltage Range	60V DC
Power Rating	500 W
Output Current	33A
Dim	(L x W x H) 34 x 36.8 x 12.7 mm
Feature	With baseplate
Height	12.7mm
Industry Standard Size	1/16 brick size
Input Voltage Range[DC] / Vdc	18 to 60
Isolation	Non-isolated
Length	34mm
Max. output current	33A
Maximum Operating Temperature	+125°C
Maximum Output Current / A	33
Maximum Output Power / W	500,PCB mount, 500W, 3.3 to 24V
Minimum Input Volage	18V DC
Nominal Input Voltage[DC] / Vdc	24/48,Non-Isolated, Step-down
Nominal Voltage	5V DC
Number of Outputs	1.0
Operating temperature (min.)	-40°C
Option	With baseplate
Output Voltage Range[DC] / Vdc	3.3 to 24
Package / Mounting	PCB mount
Power	500W
Series	i7A,Power Supplies, Sources and Loads
Terminal Style	DC-DC Converters,Through Hole
Type	DC/DC converter
Weight	50g
Width	36.8mm
