Takamisawa FTR-B4CA012Z PCB Relay 12V DC 2A 2 Change-Overs 1 piece

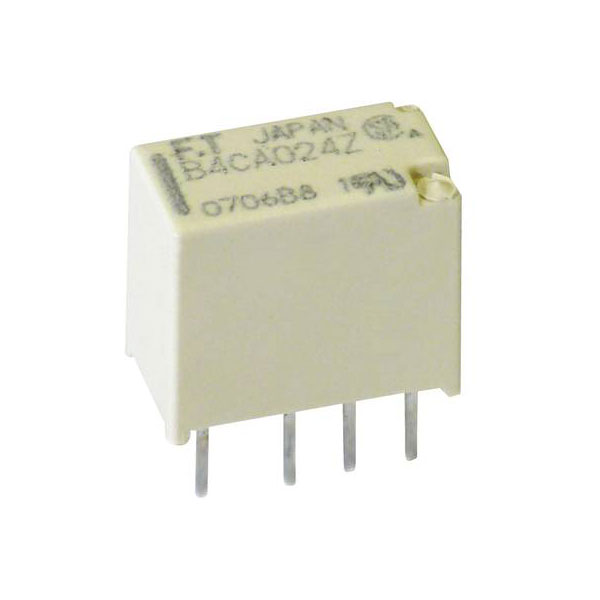

Image Representative of Range

Takamisawa FTR-B4CA012Z PCB Relay 12V DC 2A 2 Change-Overs 1 piece

Takamisawa
Order Code:

10-7409

Brand: Takamisawa MPN: FTR-B4CA012Z EAN-13: 2050001759481
Qty Unit Price (Ex VAT)
5+ £1.17
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
1,505 in stock, despatched in 4 working days

The Takamisawa FTR-B4CA012Z is a PCB relay with a 12 V DC coil, a 2 A rating, and two change-over contacts. Its compact design makes it ideal for use in printed circuit boards, particularly in applications requiring reliable switching, such as telecommunications and control systems. The relay is well-suited for both consumer electronics and industrial automation due to its robust performance and versatility.
Coil Voltage 12V DC
Contact Configuration 2 change-overs
Switching Current 2A
Coil Resistance 1028Ω
Connection Solder pins
Contact Material AgNi+Au
Control Mode monostable, 1 coil
Dimensions (L x W x H) 10.6 x 5.7 x 9 mm
Height 9mm
Length 10.6mm
Max. pick-up Voltage 28.2V DC
Max. temperature +85°C
Min. pick-up Voltage 9V DC
Minimum Temperature -40°C
Mounting Type PCB
Type PCB relay
Width 5.7mm
