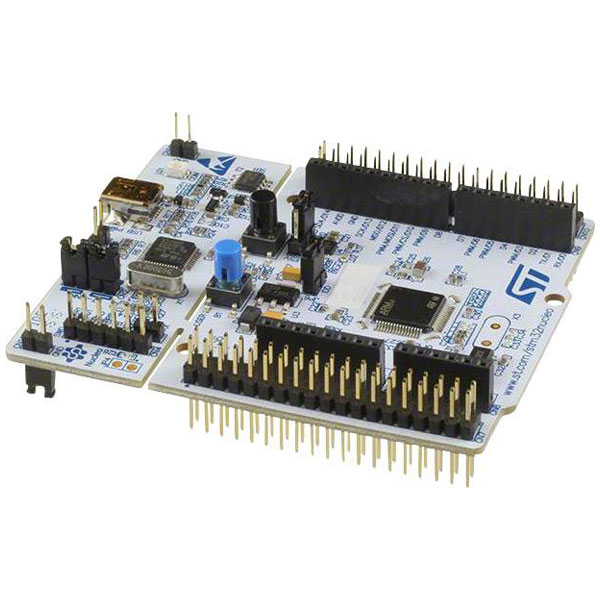

STMicroelectronics NUCLEO-F446RE PCB Design Board STM32 F4 Series Kits MCU

STMicroelectronics NUCLEO-F446RE is a powerful development board designed to evaluate and prototype with the STM32 F4 series microcontroller. As offering, alternately identified as 1416934, this board features an ARM Cortex-M4 32-bit core running at 180 MHz, providing a high-performance processing capability ideal for complex control applications. The versatile NUCLEO-F446RE includes a range of interfaces such as USART, I2C, SPI, and USB, which facilitate extensive connectivity options. It finds typical applications in embedded systems, IoT devices, and industrial control systems where robust performance and reliable interfacing are crucial for development.

Type	PCB design board
Height	70mm
Input Voltage (min.)	-0.3V
Length	45mm
Max. operating voltage	3.6V
Max. output current	+120mA
MC layout	ARM Cortex-M4
Min. operating voltage	1.7V
Output current (min.)	-120mA
Product Type	PCB design board
Series	STM32 F4 Series
Technology	32-bit MCU
Tool type	Development kit
Width	82mm
