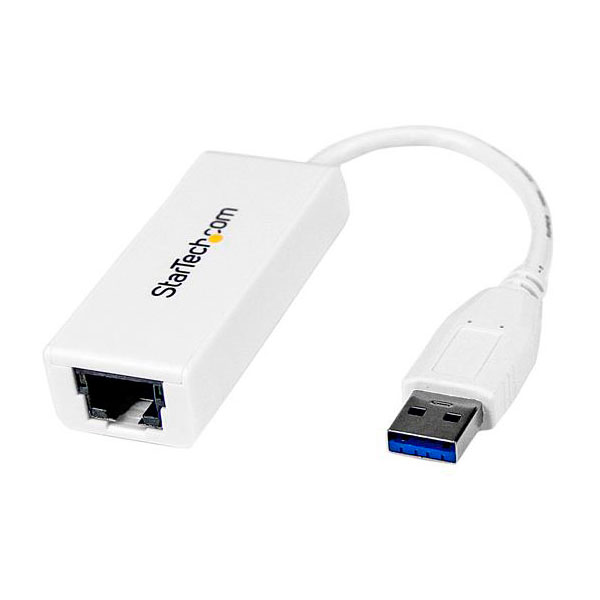

The USB31000SW USB 3.0 to Gigabit Ethernet Adaptor from StarTech.com adds a single RJ45 Ethernet port to a USB-enabled computer system, with support for Gigabit network connections at full bandwidth when used with a USB 3.0 host connection, unlike USB 2.0 adaptors.
This compact USB 3.0 network adaptor is backward compatible with older USB 2.0/1.x computer systems (speed limited by USB bus), making it the ideal portable replacement network adaptor or laptop accessory. Plus, with support for features such as Jumbo Frames, VLAN tagging and Wake on LAN (WOL), the adaptor offers versatile Gigabit network performance for home and business users alike.
The USB31000SW USB 3.0 Gigabit adaptor is backed by a 2-year warranty and free lifetime technical support.
- Colour: White
- Compatible networks: 10/100/1000 Mbps
- Connector type(s): RJ-45 female, USB 3.0 A (9 pin, SuperSpeed) male
- Enclosure type: Plastic
- Form factor: Attached cable
- Interface type and rate: USB 3.0, 5 Gbit/s
- Interface: RJ45 (Gigabit Ethernet)
- Jumbo frame support: 4K max.
- Max distance: 100m
- OS compatibility: Windows® 10, 8.1, 8, 7, Vista, XP
- Ports: 1
- System and cable requirements: Available USB port
- Product dimensions: 210 x 26 x 15.5mm
- Manufacturer's part no. USB31000SW
| Type |
USB 3 Ethernet adaptor |
| Cabling technology |
10/100/1000BaseT(X) |
| Chipset |
ASIX - AX88179 |
| Compliance certificates |
CE, RoHS |
| Component for |
PC/Laptop |
| Connectivity technology |
Wired |
| Depth |
210mm |
| Drivers included |
Yes |
| Ethernet interface type |
Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Full duplex |
Yes |
| Harmonized System (HS) code |
85176990 |
| Height |
16mm |
| Host interface |
USB |
| Housing Material |
Plastic |
| Interface |
RJ45 |
| Internal |
No |
| Jumbo frames |
4000 |
| Jumbo frames support |
Yes |
| LED indicators |
Yes |
| Linux operating systems supported |
Yes |
| Manual |
Yes |
| Master (outer) case height |
167mm |
| Master (outer) case length |
351mm |
| Master (outer) case width |
457mm |
| Maximum data transfer rate |
5000 Mbit/s |
| Maximum operating distance |
100 m |
| Networking standards |
IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u |
| Operating relative humidity (H-H) |
0 - 80% |
| Operating temperature (T-T) |
0 - 40 °C |
| Package depth |
133mm |
| Package height |
45mm |
| Package weight |
119 g |
| Package width |
162mm |
| Product colour |
White |
| Products per master (outer) case |
20 pc(s) |
| Storage temperature (T-T) |
-20 - 60 °C |
| Sustainability compliance |
Yes |
| USB version |
3.2 Gen 1 (3.1 Gen 1) |
| VLAN tagging |
Yes |
| Weight |
27 g |
| Width |
26mm |
