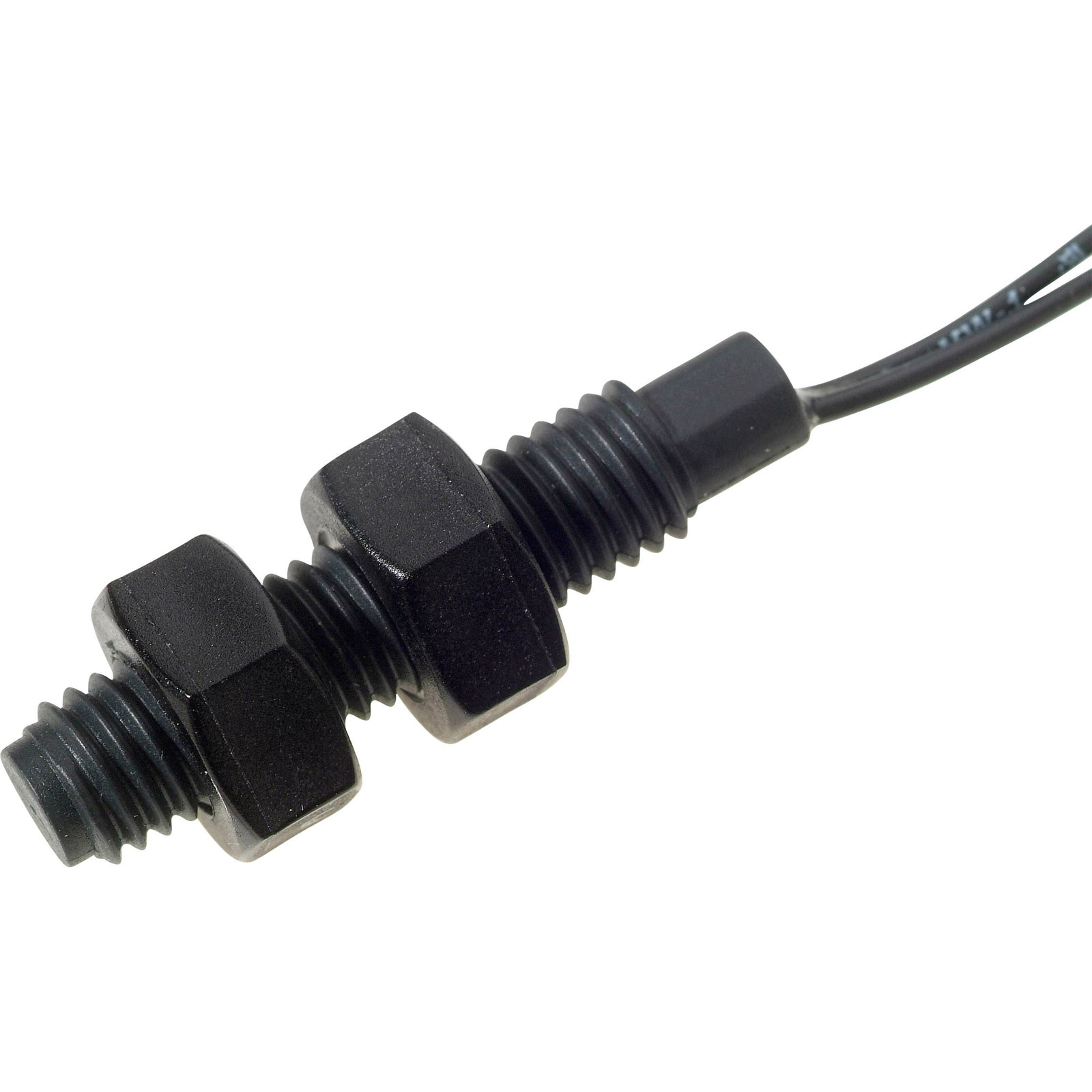

StandexMeder 9118000001 MK11 Reed Switch 180V 0.5A 10W M8 Thread

StandexMeder Electronics
Standard range
Order Code:

10-6906

Brand: StandexMeder Electronics MPN: 9118000001 EAN-13: 2050003801089
Qty Unit Price (Ex VAT)
1+ £6.14
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
89 in stock, despatched in 4 working days

The StandexMeder Electronics MK11/M8-SET is a reed switch with a voltage rating of 180 V DC and 180 V AC, a current rating of 0.5 A, and a power rating of 10 W. Its compact and reliable design is ideal for applications such as door contacts and sensors. As a product of StandexMeder Electronics, it ensures high quality and performance in its specified range of applications.
Type Reed switch
Cable length 0.50m
Connection Open end cable
Contact type 1 maker
Dim (L x W x H) 38 x 8.3 x 8.3 mm
Height 8.3mm
Length 38mm
Max. switching capacity 10W
Max. temperature 80°C
Min. temperature -30°C
Misc Attribute MK11/M8-SET
Switching current (max.) 0.5A
Thread Size M8
Water activity 52 - 90
Water activity (max.) 90
Water activity (min.) 52
Width 8.3mm
