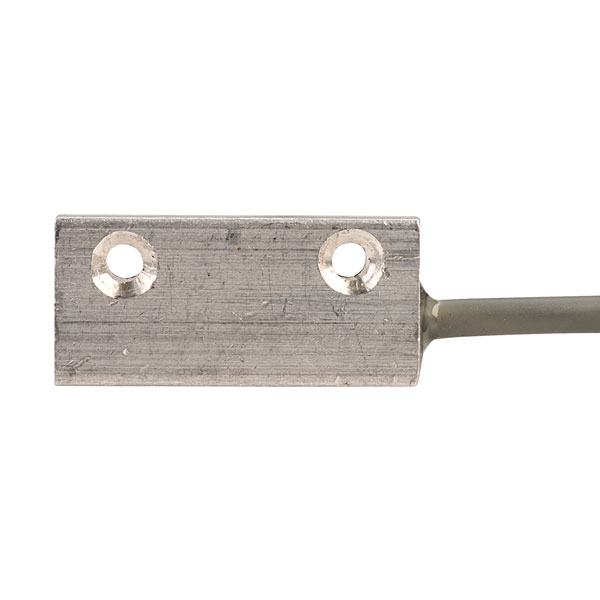

A robust proximity reed switch housed in a light weight aluminium sealed housing.
- Designed for use in control circuits and security systems etc.
- For matching magnet see 78-1004
- All fixing holes are countersunk for a neat finish when secured to a surface
- Termination is a twin 280mm long PVC insulated lead
| Connection |
Cable |
| Contact Configuration |
NO |
| Material |
Aluminium |
| Operating Temperature |
-20 to +85°C |
| Operating Voltage (DC) |
N/A |
| Output |
N/A |
| Protection Type |
N/A |
| Sensor Type |
Reed switch |
| Size |
32x15x8mm |
| Switching Frequency |
N/A |
