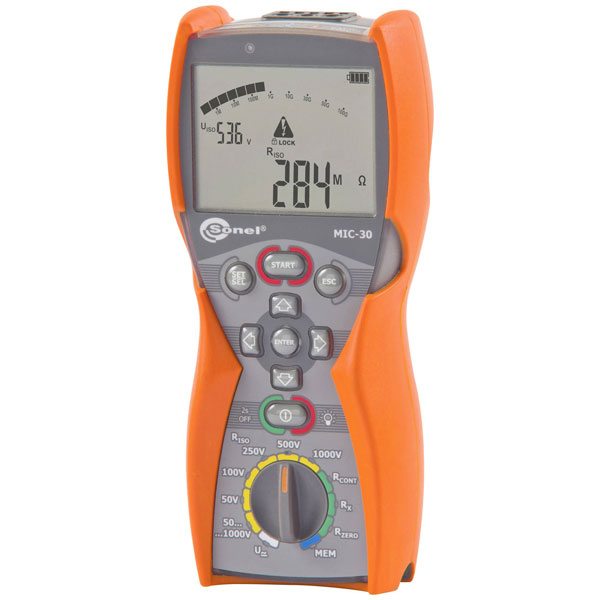

Sonel WMGBMIC30 MIC-30 Insulation Tester 50-1000V Ergonomic ISO-calibrated

The Sonel MIC-30 insulation tester, manufactured by Sonel, is calibrated to ISO standards for voltages of 50 V, 100 V, 250 V, 500 V, and 1000 V up to 100 GO. It features advanced functions such as polarisation index (PI), dielectric absorption ratio (DAR), dielectric discharge (DD), and a burning function for diagnostic insulation testing. Typical applications include electrical isolation tests and resistance measurements in industrial and commercial settings.

Minimum Test Voltage	CAT I
Display Type	Digital (LCD)
Calibrated	ISO standards
Dimensions	(L x W x H) 160 x 305 x 265 mm
Height	265mm
Insulation resistance (max.)	100 GΩ
Interfaces	Bluetooth®
IP Rating	IP67
Length	160mm
Reading category	CAT IV 600 V
Reading Type	Insulation resistance
Type	Insulation tester
Width	305mm
