Solid State Relays Panel Mount - Series 1

Crydom Brand: Crydom

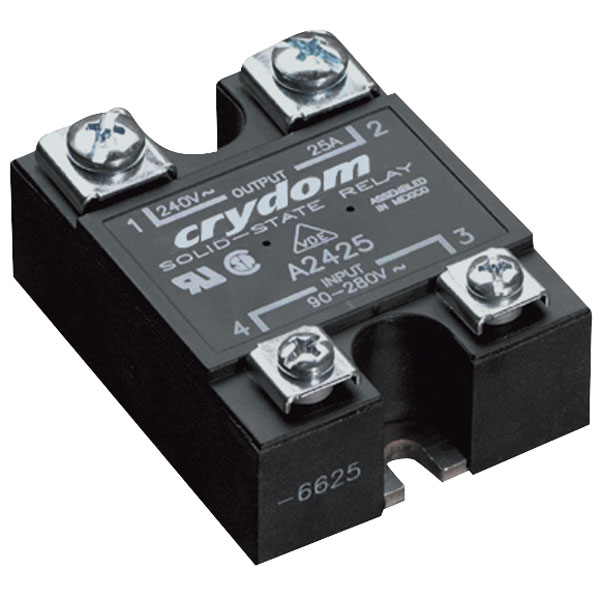

A range of SSRs that feature a modern SMD-technology design. The relays have optically isolated SCR outputs for high switching loads in industrial applications. The industry standard 'hockey-puck' housing is suitable for both chassis and heat sink mounting.

  • High reliablity in the most difficult applications
  • Dimensions (L x W x H) 58.4 x 45.7 x 33 mm
  • Ambient temperature –40°C to +80°C
  • CSA, UL, VDE approved
Description Image Product Buy Pricing (Ex VAT) Type Maximum Temperature Min. temperature Weight Input Voltage Contact Configuration Switching Current Switching Voltage Length Width Height Impedance Input Current Mounting Type
Crydom D2425-10 Solid State Relay 25A 3-32VDC
Crydom D2425-10 Solid State Relay 25A 3-32VDC
Standard range
Order code: 50-8408
MPN: D2425-10

Despatched within 4 working days - 15 in stock
1+ £45.16
Price per unit Ex VAT 		SSR +80°C -40°C 86.5g 32V SPST-NO 25A 280VAC 58.4mm 45.7mm 23mm 1500Ω 20mA Panel
Crydom D2425 Solid State Relay 25A 3-32VDC
Crydom D2425 Solid State Relay 25A 3-32VDC
Order code: 50-8410
MPN: D2425
1+ £30.34
Price per unit Ex VAT 		74.9g 32V SPST-NO 25A 280VAC 58.4mm 45.7mm 23mm 1500Ω 20mA Panel
