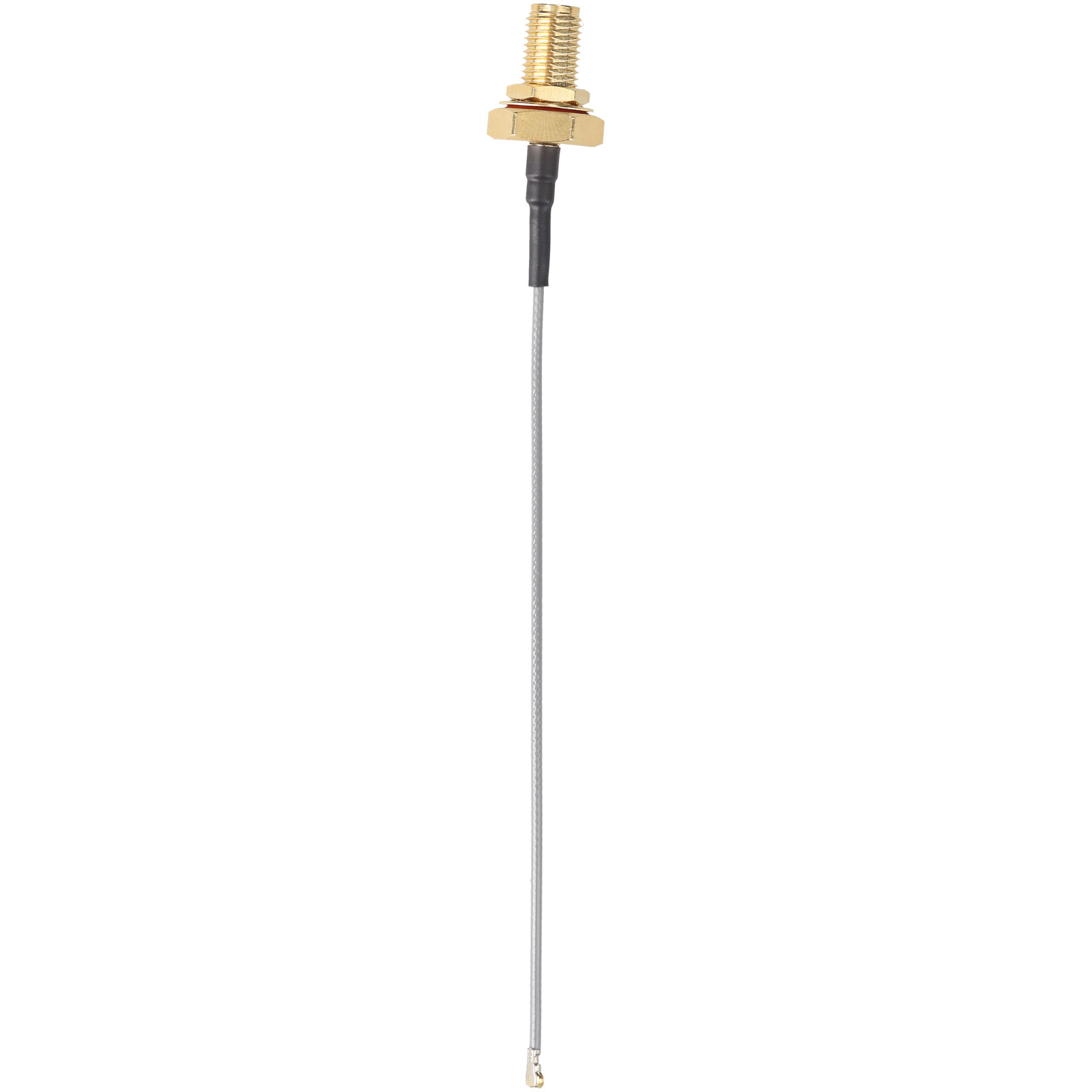

A 1.13mm low loss coaxial 150mm cable assembly, designed to control and reduce VSWR and Return Loss. The 1.13mm diameter flexible cable has MHF4 micro RF coax connector fitted at one end and SMA coax connector at the other.
Flexible, miniature 1.13mm, 50Ω coax cable Length: 110mm Operating Frequency: up to 6GHz Siretta type: ASMGA015XD113S11
Type
Coax Pigtail Cable Assembly
Cable Diameter
1.13mm
Capacitance (nominal)
96pF/m
Connector 1
IPEX MHF4 L
Connector 2
SMA bulkhead female
Impedance (nominal)
50Ω
Length
150mm
Mounting Type
Rear Mount
Propagation Velocity (nominal)
69%
