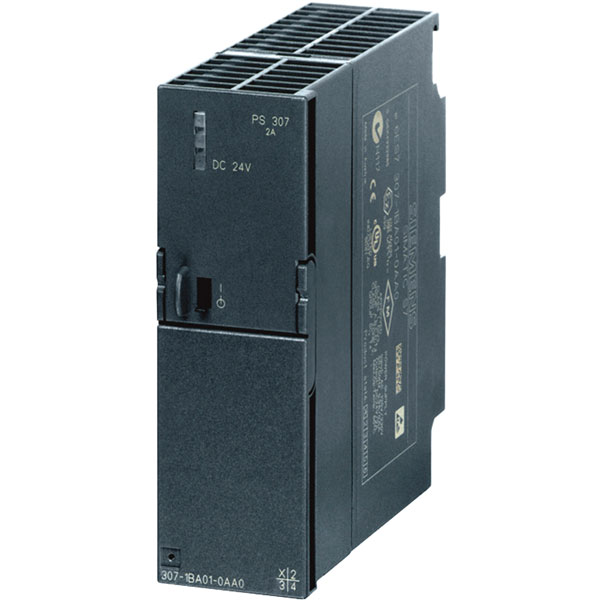

Siemens SIMATIC PS307 DIN Rail Power Supply , 24V DC, S7-300 Series

Siemens Brand: Siemens

A range of Siemens SIMATIC PS307 DIN Rail Power Supplies from the S7-300 Series. These modular power supplies satisfy the mid range needs of the market, enabling you to choose the modules for the task at hand.

The S7-300 Series was not only designed to be a mid range controller, but also for applications within the manufacturing industries, more specifically the automotive and packaging industries sectors.

  • Wide voltage input range
  • Power indicator
  • Can be switched in parallel for increased power
  • Efficiency up to 84%
  • Output-over voltage and short circuit protection with automatic restart
  • Safety: EN60950-1 and EN 50178
  • Approvals: UL508, CSA C22.2 no. 142
  • Explosion protection: ATEX94/9EC EX II 3G; EEx, nA, II, T4 U; UL1604 class I Div. 2 Group A, B, C, D
  • FM-approved class I Div. 2 Group A, B, C, D T4
  • Ship building licensure: in system S7-300
  • EMV: EN 55022 class B, EN 61000-6-2
  • Temperature range: 0°C to -60°C without derating
  • Supplied with SIMATIC connecting brush and operating instructions
  • Supplied with 24V output voltage
  • Available in 2.0, 5.0 and 10A options
Description Image Product Buy Pricing (Ex VAT) Type Output Current Power Rating AC input frequency AC input voltage Module type DC output current Dimensions DC output voltage Package depth Depth Package height No. of outputs Package width Height Purpose Product colour Operating temperature (T-T) Weight Storage temperature (T-T)
Siemens 6ES7307-1EA01-0AA0 SIMATIC PS307 DIN Rail Power Supply 24VDC 5A 120W
Siemens 6ES7307-1EA01-0AA0 SIMATIC PS307 DIN Rail Power Supply 24VDC 5A 120W
Standard range
Order code: 55-8149
MPN: 6ES73071EA010AA0

11 in stock, despatched in 4 working days
1+ £233.92
Price per unit Ex VAT 		PS transformer 5 120W 50 - 60 Hz 120 - 230 V 5 A 60(W) x 125(H)mm 24 V 120mm 3x 125mm Black 0 - 60 °C 60 g -40 - 85 °C
Siemens 6ES7307-1KA02-0AA0 SIMATIC PS307 DIN Rail Power Supply 24VDC 10A 240W
Siemens 6ES7307-1KA02-0AA0 SIMATIC PS307 DIN Rail Power Supply 24VDC 10A 240W
Standard range
Order code: 55-8150
MPN: 6ES73071KA020AA0

6 in stock, despatched in 4 working days
1+ £312.73
Price per unit Ex VAT 		10 240W Analog 80(W) x 125(H)mm 90mm 130mm 4x 170mm System power Multicolour 800 g
Mftrs. Part no.TypeVoltagePowerWattsOrder code
6ES7307-1EA01-0AA0 SIMATIC PS307 DIN Rail PSU 24VDC 5A 120W55-8149
6ES7307-1KA02-0AA0 SIMATIC PS307 DIN Rail PSU 24VDC 10A 240W55-8150
