Siemens 7KT1200 3-phase current transformer 60A/5A 13mm diameter

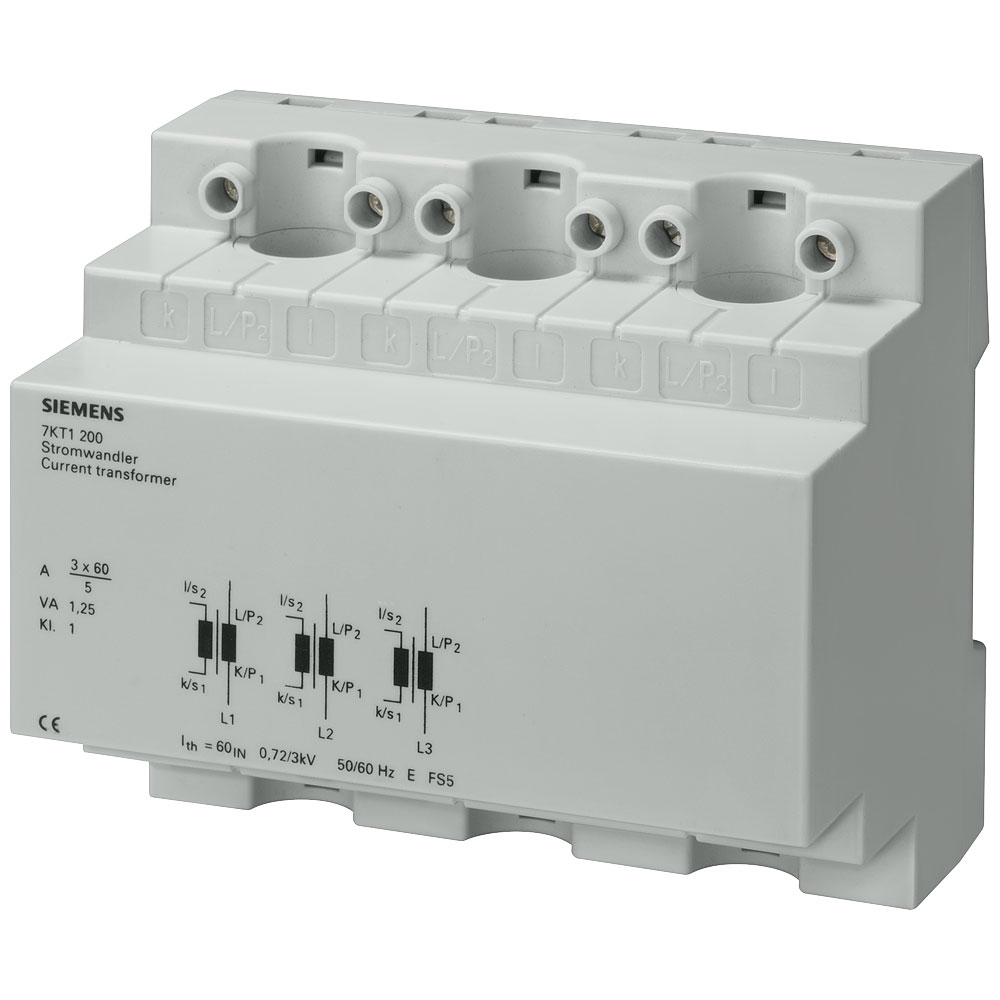

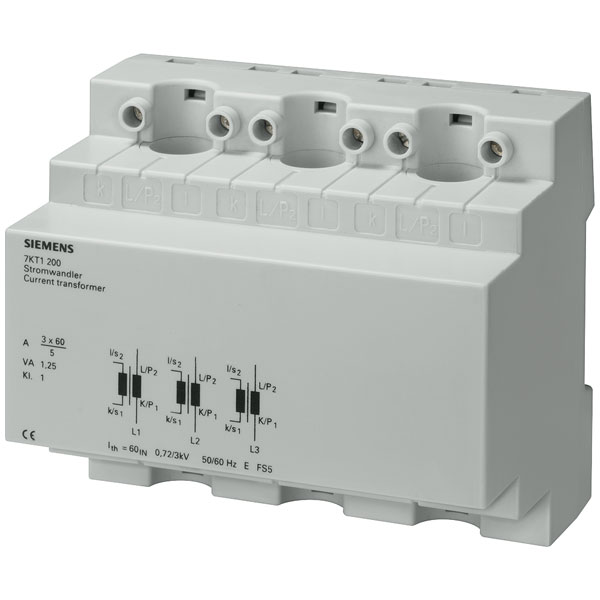

Image Representative of Range

Siemens 7KT1200 3-phase current transformer 60A/5A 13mm diameter

Siemens
Order Code:

07-0856

Brand: Siemens MPN: 7KT1200 EAN-13: 4001869197302
Qty Unit Price (Ex VAT)
1+ £117.06
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
5 in stock, despatched in 4 working days

The Siemens 7KT1200 is a 3-phase current transformer with a primary current of 60 A and a secondary current of 5 A. It features a line feed-through diameter of 13 mm and is suitable for screw-fit installation. This transformer is typically used in electrical monitoring applications, helping to measure and convert current for safety and efficiency.
Accuracy Class 1
Calibrated N/A
Colour Grey
Dim (L x W x H) 64 x 105 x 90 mm
Fitting type Screw-fit
Height 90mm
Height opening N/A
Length 64mm
Line feed-through diameter 13mm
Model Through-feed current converter
Number of primary inputs 1
Opening diameter 13.0mm
Overcurrent limiting factor FS 5
Package depth 70mm
Package height 100mm
Package width 110mm
Power 1.25VA
Power Consumption N/A
Primary Current 60A
Rated primary current 60A
Rated secondary apparent power 1.25VA
Rated secondary current 5A
Secondary connection N/A
Secondary current 5A
Snap mounting TRUE
Type 3-phase current transformer
Width 105mm
Width opening N/A
With contact protection FALSE
With copper rail FALSE
