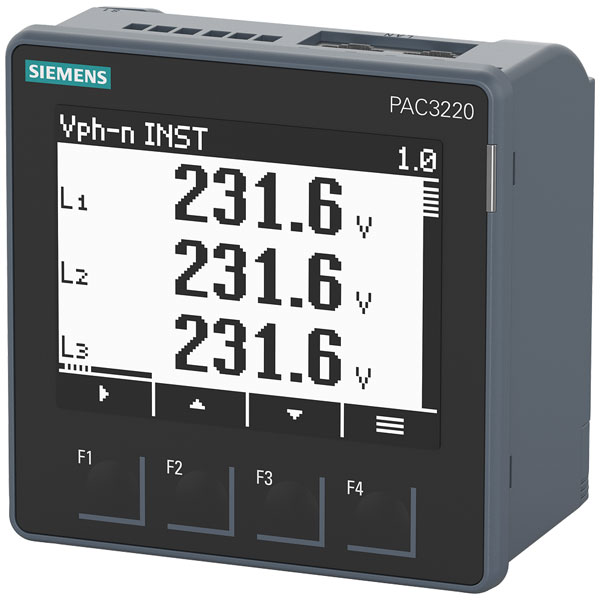

Siemens 7KM3220-0BA01-1DA0 SENTRON PAC3220 96x96mm Power monitor Modbus

The Siemens 7KM3220-0BA01-1DA0 is a panel meter designed for voltage and current display applications. It provides accurate measurement of electrical parameters, making it suitable for monitoring energy consumption in industrial settings. This device is typically used in energy management systems to ensure efficient power usage and reliability.

Accuracy class active energy according to IEC 62053-22	N/A
Accuracy class reactive energy according to IEC 62053-23	N/A
Ampere meter	TRUE
Apparent power	N/A
Assembly dimensions	92 mm x 92mm
Calibrated	N/A
Connectable conductor cross section solid-core	N/A
Connections	Screw terminals
Degree of protection (IP), front side	N/A
Depth	56mm
Dim	(W x H x D) 96 x 96 x 56 mm
Display	N/A
Display (details)	Point matrix, 130 x 100 pixels
Display lighting	white
Display resolution (horizontal)	N/A
Display resolution (vertical)	N/A
Display technology	LCD
Effective power measurement device	TRUE
Frequency meter	TRUE
Harmonics measurement	N/A
Height	96mm
Max. current (Imax)	N/A
Measured value memory	N/A
Measurement type load profile	N/A
Measuring range for frequency	N/A
Misc Attribute	7KM3220-0BA01-1DA0
Model	N/A
Mounting method	N/A
Nominal current (In)	N/A
Number of Analogue Inputs	0
Number of Analogue Outputs	0
Number of current measurement inputs	3
Number of Digital Inputs	2
Number of Digital Outputs	2
Number of Ethernet connections	0
Number of voltage measurement inputs	3
Pole type	N/A
Power Factor	N/A
Power supply (details)	95 - 240 V/AC, 110 - 340 AV DC
Pulse counter	TRUE
Pulse output	N/A
Reactive power meter	TRUE
Reading Category	CAT III
Recess height	92mm
Recess width	92
Remote display	N/A
Sampling frequency	N/A
Step angle (cos phi)	N/A
Suitable for RJ plug	N/A
Supply voltage AC 50 Hz	400 - 400V
Supply voltage AC 60 Hz	690 - 690V
Supply voltage DC	100 - 250V
Supporting protocol for IEC 61850 Ethernet	N/A
Supporting protocol for Modbus	true
Supporting protocol for OPC UA PubSub	false
Supporting protocol for other bus systems	N/A
Supporting protocol for PROFIBUS	true
Supporting protocol for PROFINET IO	true
Type	7KM3220-0BA01-1DA0
Voltage type (supply voltage)	N/A
Voltmeter	TRUE
Web server with HTTPS transfer protocol	N/A
Width	96mm
With audit logging (audit log)	true
With communication interface KNX	N/A
With communication interface RS-485	N/A
With firmware signature	true
With logging of security events (security event log)	N/A
With Role Based Access Control (RBAC)	N/A
With rotational speed meter	FALSE
Wth communication interface M-Bus	N/A
