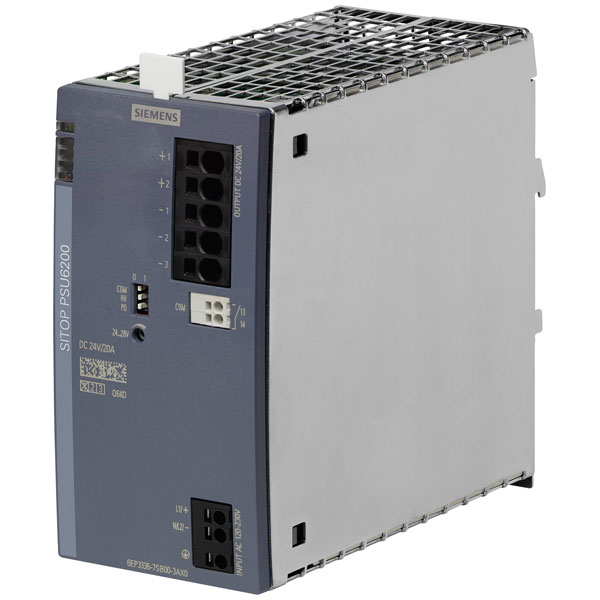

Siemens 6EP33367SB003AX0 SITOP PSU6200 Power supply 24V 20A 480W 1pc

The Siemens 6EP3336-7SB00-3AX0 is a DIN rail-mounted power supply unit providing 24 V, 20 A, and 480 W, designed for industrial applications. This highly reliable unit is known for its single output, making it suitable for use in factory automation and machinery. It ensures stable and efficient power delivery, ideal for demanding industrial environments.

Type	Power supply unit
Output Voltage	24V
Output Current	20A
Number of Outputs	1
Power Rating	480W
1st secondary output voltage	24 - 24V
2nd secondary output voltage	N/A
3rd secondary output voltage	N/A
Built-in height	225mm
Built-in width	70mm
Degree of protection (IP)	IP20
Degree of protection (NEMA)	N/A
Depth	155mm
Dim	(L x W x H) 155 x 70 x 135 mm
Direct mounting possible	false
Height	135mm
Input Voltage	18.5 - 32.2V DC
Length	155mm
Max. output current	20A
Max. output current 1	20A
Max. output current 2	N/A
Max. output current 3	N/A
Max. temperature	85°C
Min. input voltage	85
Min. temperature	-40°C
Misc Attribute	6EP3336-7SB00-3AX0
Nominal value output current 1	20A
Nominal value output current 2	N/A
Nominal value output current 3	N/A
Nominal value output voltage 1	24V
Nominal value output voltage 2	N/A
Nominal value output voltage 3	N/A
Operating temperature (max.)	70°C
Operating temperature (min.)	-25°C
Output voltage stabilized	true
Performance level according to EN ISO 13849-1	N/A
Phases	1
Power Consumption	N/A
Power Output	480W
Rated supply voltage AC 50 Hz	240 - 240V
Rated supply voltage AC 60 Hz	120 - 120V
Rated supply voltage DC	110 - 240V
Secondary voltage adjustable	true
Short-circuit-proof	true
SIL according to IEC 61508	N/A
Stabilized	true
Suitable for distribution board	true
Suitable for rail mounting	true
Suitable for safety functions	N/A
Type of electric connection	N/A
Voltage type (supply voltage)	AC/DC
Wall mounting possible	false
Weight	1.5kg
Width	70mm
Width in number of modular spacings	N/A
