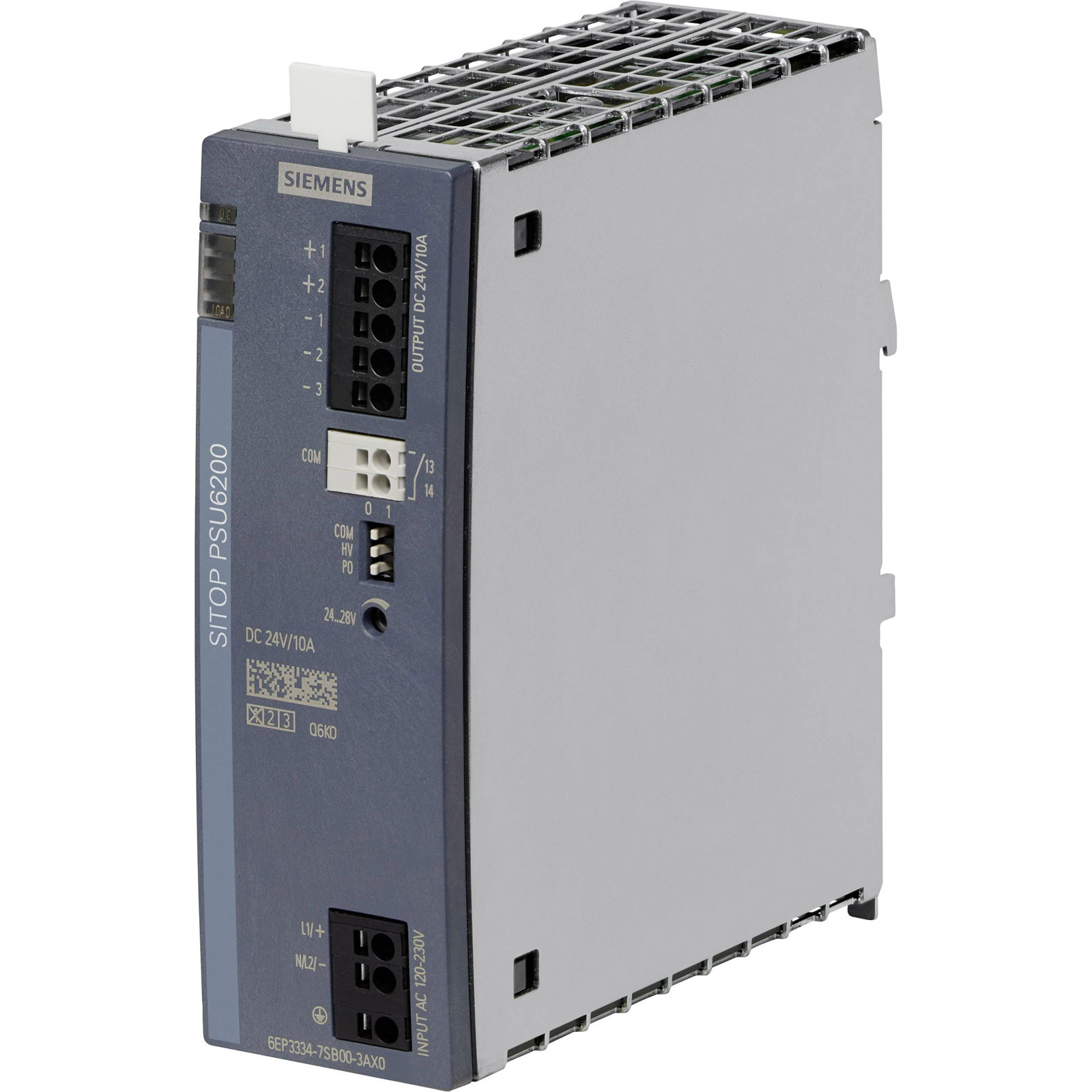

Siemens 6EP33347SB003AX0 SITOP PSU6200 Power supply 24V 10A 240W 1 output

The Siemens 6EP3334-7SB00-3AX0 is an industrial DIN rail power supply unit that provides a reliable 24 V output at 10 A with a total power of 240 W. This single-output power supply module is ideal for use in various industrial applications, offering efficient and stable performance. It is designed for easy installation on DIN rails, making it suitable for automation systems and process control environments.

Type	Power supply unit
Output Voltage	24V
Output Current	10A
Number of Outputs	1
Power Rating	240W
1st secondary output voltage	24 - 24V
2nd secondary output voltage	N/A
3rd secondary output voltage	N/A
Built-in height	225mm
Built-in width	45mm
Degree of protection (IP)	IP20
Degree of protection (NEMA)	N/A
Depth	125mm
Dim	(L x W x H) 125 x 45 x 195 mm
Direct mounting possible	false
Height	195mm
Input Voltage	18.5 - 32.2V DC
Length	125mm
Max. output current	10A
Max. output current 1	10A
Max. output current 2	N/A
Max. output current 3	N/A
Maximum Operating Temperature	70°C
Maximum Temperature	85°C
Min. temperature	-40°C
Minimum Input Volage	85
Misc Attribute	6EP3334-7SB00-3AX0
Nominal value output current 1	10A
Nominal value output current 2	N/A
Nominal value output current 3	N/A
Nominal value output voltage 1	24V
Nominal value output voltage 2	N/A
Nominal value output voltage 3	N/A
Operating temperature (min.)	-25°C
Output voltage stabilized	true
Performance level according to EN ISO 13849-1	N/A
Phases	1
Power Consumption	N/A
Power Output	240W
Rated supply voltage AC 50 Hz	240 - 240V
Rated supply voltage AC 60 Hz	120 - 120V
Rated supply voltage DC	110 - 240V
Secondary voltage adjustable	true
Short-circuit-proof	true
SIL according to IEC 61508	N/A
Stabilized	true
Suitable for distribution board	true
Suitable for rail mounting	true
Suitable for safety functions	N/A
Type of electric connection	N/A
Voltage type (supply voltage)	AC/DC
Wall mounting possible	false
Weight	0.9kg
Width	45mm
Width in number of modular spacings	N/A
