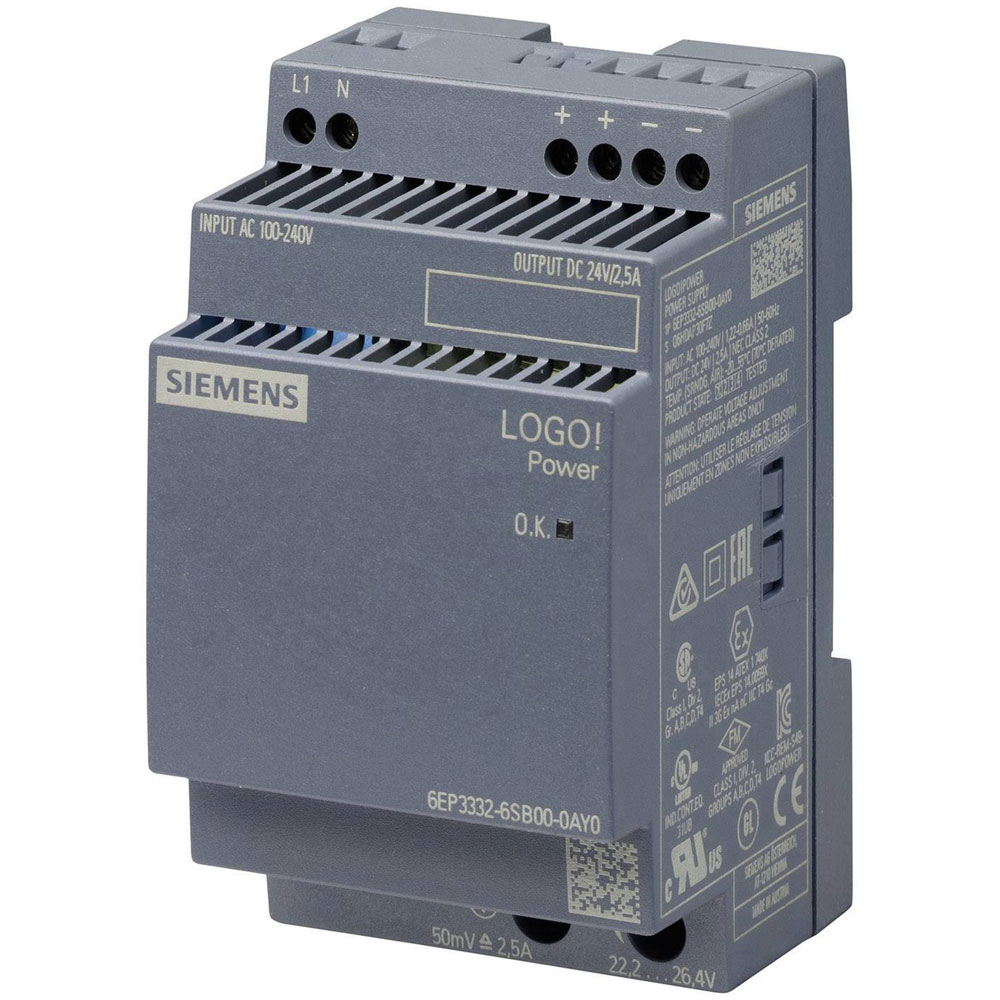

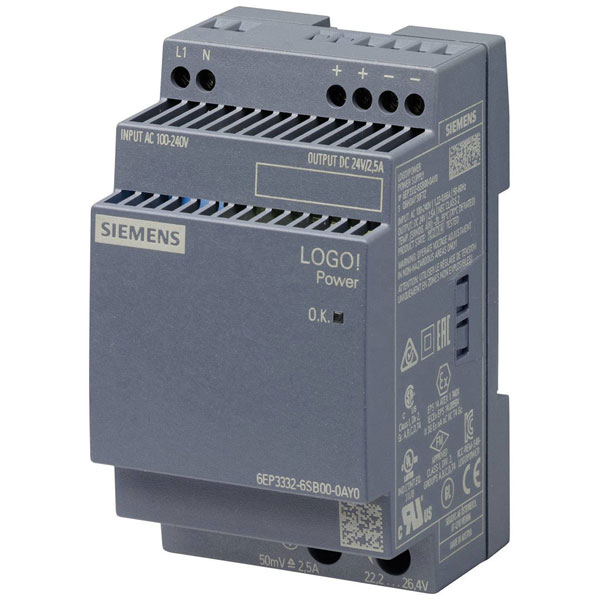

The Siemens 6EP3332-6SB00-0AY0 PLC power supply unit is a reliable component designed for programmable logic controllers. It offers consistent and efficient power delivery, ensuring stable operation in industrial automation systems. Typical applications include machinery control and factory automation processes.
| Type |
PLC power supply unit |
| Output Voltage |
24V DC |
| Number of Outputs |
1 |
| Power Rating |
60W |
| 1st secondary output voltage |
24 - 24V |
| 2nd secondary output voltage |
N/A |
| 3rd secondary output voltage |
N/A |
| Built-in height |
130mm |
| Built-in width |
54mm |
| Connection |
Screw terminal |
| Degree of protection (IP) |
IP20 |
| Degree of protection (NEMA) |
N/A |
| Depth |
53mm |
| Dim |
(L x W x H) 53 x 54 x 90 mm |
| Direct mounting possible |
true |
| Height |
90mm |
| Input voltage (max.) |
240V AC |
| IP Rating |
IP20 |
| Length |
53mm |
| Max. operating voltage |
240V AC |
| Max. output current |
2.5A |
| Max. output current 1 |
2.5A |
| Max. output current 2 |
N/A |
| Max. output current 3 |
N/A |
| Max. temperature |
+70°C |
| Min. input voltage |
100V AC |
| Min. operating voltage |
100V AC |
| Min. temperature |
-25°C |
| Misc Attribute |
6EP3332-6SB00-0AY0 |
| Nominal value output current 1 |
2.5A |
| Nominal value output current 2 |
N/A |
| Nominal value output current 3 |
N/A |
| Nominal value output voltage 1 |
24V |
| Nominal value output voltage 2 |
N/A |
| Nominal value output voltage 3 |
N/A |
| Operating Voltage |
100 - 240 V AC |
| Output voltage stabilized |
true |
| Performance level according to EN ISO 13849-1 |
N/A |
| Phases |
1 |
| Power Consumption |
N/A |
| Power Output |
60W |
| Rated supply voltage AC 50 Hz |
240 - 240V |
| Rated supply voltage AC 60 Hz |
100 - 100V |
| Rated supply voltage DC |
N/A |
| Secondary voltage adjustable |
true |
| Short-circuit-proof |
true |
| SIL according to IEC 61508 |
N/A |
| Stabilized |
true |
| Suitable for distribution board |
true |
| Suitable for rail mounting |
true |
| Suitable for safety functions |
N/A |
| Type of electric connection |
N/A |
| Voltage type (supply voltage) |
AC/DC |
| Wall mounting possible |
true |
| Width |
54mm |
| Width in number of modular spacings |
N/A |
