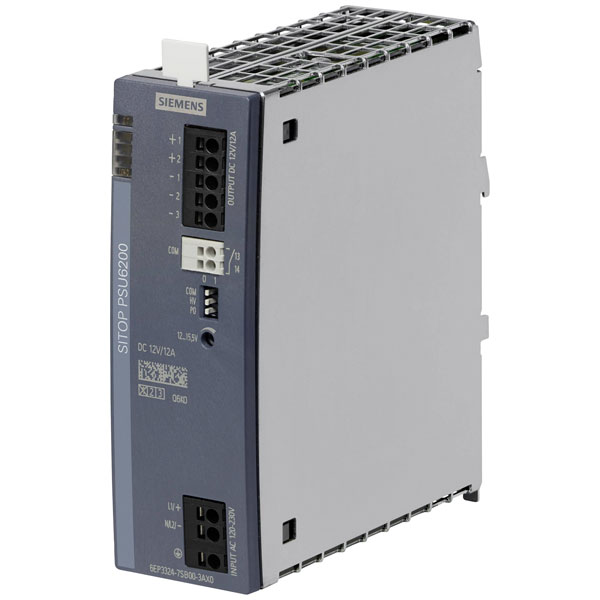

Siemens 6EP33247SB003AX0 SITOP PSU6200 Power supply 12V 12A 144W 1 output

The Siemens 6EP3324-7SB00-3AX0 is a DIN rail-mounted power supply unit, providing 12 V output at 12 A with a total power of 144 W. It features a single output and is ideal for industrial applications requiring reliable and stable power. Typical uses include powering control systems and automation equipment.

Type	Power supply unit
Output Voltage	12V
Output Current	12A
Number of Outputs	1
Power Rating	144W
1st secondary output voltage	12 - 12V
2nd secondary output voltage	N/A
3rd secondary output voltage	N/A
Built-in height	225mm
Built-in Width	45mm
Degree of protection (IP)	IP20
Degree of protection (NEMA)	N/A
Depth	125mm
Dim	(L x W x H) 125 x 45 x 135 mm
Direct mounting possible	false
Height	135mm
Input Voltage	18.5 - 32.2V DC
Length	125mm
Max. output current	12A
Max. output current 1	12A
Max. output current 2	N/A
Max. output current 3	N/A
Maximum Operating Temperature	70°C
Maximum Temperature	85°C
Min. temperature	-40°C
Minimum Input Volage	85
Misc Attribute	6EP3324-7SB00-3AX0
Nominal value output current 1	12A
Nominal value output current 2	N/A
Nominal value output current 3	N/A
Nominal value output voltage 1	12V
Nominal value output voltage 2	N/A
Nominal value output voltage 3	N/A
Operating temperature (min.)	-25°C
Output voltage stabilized	true
Performance level according to EN ISO 13849-1	N/A
Phases	1
Power Consumption	N/A
Power Output	144W
Rated supply voltage AC 50 Hz	240 - 240V
Rated supply voltage AC 60 Hz	120 - 120V
Rated supply voltage DC	110 - 240V
Secondary voltage adjustable	true
Short-circuit-proof	true
SIL according to IEC 61508	N/A
Stabilized	true
Suitable for distribution board	true
Suitable for rail mounting	true
Suitable for safety functions	N/A
Type of electric connection	N/A
Voltage type (supply voltage)	AC/DC
Wall mounting possible	false
Weight	0.9kg
Width	45mm
Width in number of modular spacings	N/A
