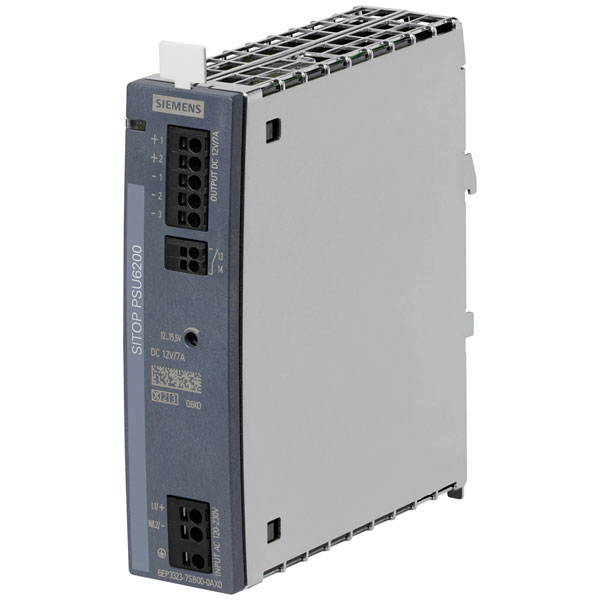

Siemens 6EP33237SB000AX0 SITOP PSU6200 12V 7A 84W Power supply 1 output

The Siemens 6EP3323-7SB00-0AX0 is a DIN rail-mount industrial power supply unit, offering 12 V output at 7 A with a power capacity of 84 W. It features a single output, making it ideal for streamlined applications in industrial environments. Designed for reliability and efficiency, it is commonly used in automation systems and control panels.

Type	Power supply unit
Output Voltage	12V
Output Current	7A
Number of Outputs	1
Power Rating	84W
1st secondary output voltage	12 - 12V
2nd secondary output voltage	N/A
3rd secondary output voltage	N/A
Built-in height	225mm
Built-in width	35mm
Degree of protection (IP)	IP20
Degree of protection (NEMA)	N/A
Depth	125mm
Dim	(L x W x H) 125 x 35 x 135 mm
Direct mounting possible	false
Height	135mm
Input Voltage	18.5 - 32.2V DC
Length	125mm
Max. output current	7A
Max. output current 1	7A
Max. output current 2	N/A
Max. output current 3	N/A
Max. temperature	85°C
Min. temperature	-40°C
Misc Attribute	6EP3323-7SB00-0AX0
Nominal value output current 1	7A
Nominal value output current 2	N/A
Nominal value output current 3	N/A
Nominal value output voltage 1	12V
Nominal value output voltage 2	N/A
Nominal value output voltage 3	N/A
Operating temperature (max.)	70°C
Operating temperature (min.)	-25°C
Output voltage stabilized	true
Performance level according to EN ISO 13849-1	N/A
Phases	1
Power Consumption	N/A
Power Output	84W
Rated supply voltage AC 50 Hz	240 - 240V
Rated supply voltage AC 60 Hz	120 - 120V
Rated supply voltage DC	120 - 240V
Secondary voltage adjustable	true
Short-circuit-proof	true
SIL according to IEC 61508	N/A
Stabilized	true
Suitable for distribution board	true
Suitable for rail mounting	true
Suitable for safety functions	N/A
Type of electric connection	N/A
Voltage type (supply voltage)	AC/DC
Wall mounting possible	false
Weight	0.7kg
Width	35mm
Width in number of modular spacings	N/A
