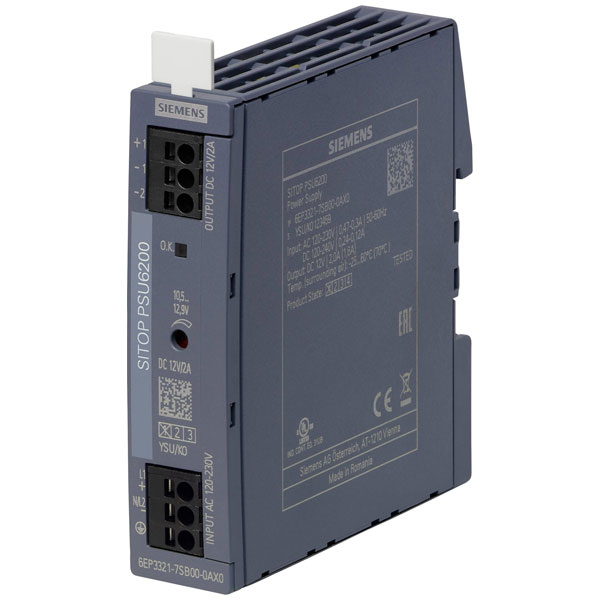

Siemens 6EP33217SB000AX0 SITOP PSU6200 Power supply 12V 2A 24W 1 output

The Siemens 6EP33217SB000AX0 power supply unit provides 12 V at 2 A, offering a total output power of 24 W. Designed for DIN rail mounting, it is suitable for industrial environments requiring reliable and efficient power solutions. This unit is ideal for use in control cabinets and automation systems where stable and compact power supply is essential.

Type	Power supply unit
Output Voltage	12V
Output Current	2A
Number of Outputs	1
Power Rating	24W
1st secondary output voltage	12 - 12V
2nd secondary output voltage	N/A
3rd secondary output voltage	N/A
Built-in height	200mm
Built-in width	25mm
Degree of protection (IP)	IP20
Degree of protection (NEMA)	N/A
Depth	88mm
Dim	(W x H) 25 mm x 200 mm
Direct mounting possible	false
Height	200mm
Input Voltage	18.5 - 32.2V DC
Max. output current	2A
Max. output current 1	2A
Max. output current 2	N/A
Max. output current 3	N/A
Max. temperature	85°C
Min. temperature	-40°C
Misc Attribute	Siemens Dig.Industr.
Nominal value output current 1	2A
Nominal value output current 2	N/A
Nominal value output current 3	N/A
Nominal value output voltage 1	12V
Nominal value output voltage 2	N/A
Nominal value output voltage 3	N/A
Operating temperature (max.)	70°C
Operating temperature (min.)	-25°C
Output voltage stabilized	true
Performance level according to EN ISO 13849-1	N/A
Phases	1
Power Consumption	N/A
Power Output	24W
Rated supply voltage AC 50 Hz	240 - 240V
Rated supply voltage AC 60 Hz	120 - 120V
Rated supply voltage DC	120 - 240V
Secondary voltage adjustable	true
Short-circuit-proof	true
SIL according to IEC 61508	N/A
Stabilized	true
Suitable for distribution board	true
Suitable for rail mounting	true
Suitable for safety functions	N/A
Type of electric connection	N/A
Voltage type (supply voltage)	AC/DC
Wall mounting possible	false
Weight	0.26kg
Width	25mm
Width in number of modular spacings	N/A
