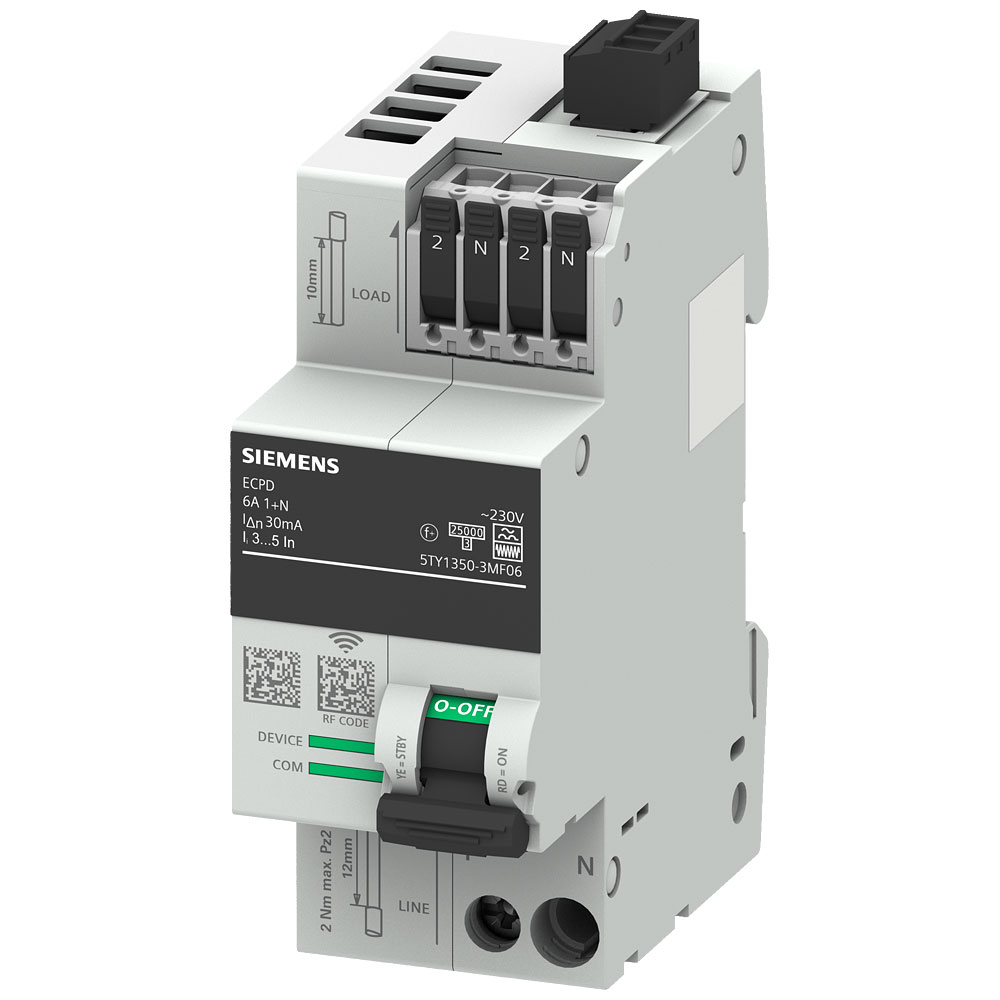

Siemens manufactures the 5TY13503MF06 circuit protection device, designed for single-phase systems. It features a 2-pin configuration, capable of handling 0.03 A at 230 V, ensuring safety and reliability. This product is ideal for use in residential or commercial electrical installations to prevent overloads and short circuits.
| Type |
Circuit protection |
| Voltage Rating - AC |
230V AC |
| Tripping Characteristics |
F |
| Ambient temperature during operating |
N/A |
| Anti-nuisance tripping version |
N/A |
| Built-in depth |
70mm |
| Concurrently switching neutral conductor |
N/A |
| Connectable conductor cross section multi-wired |
N/A |
| Connectable conductor cross section solid-core |
N/A |
| Current limiting class |
3 |
| Degree of protection (IP) |
IP20 |
| Depth |
70mm |
| Differential current rating |
0.03A |
| Dim |
(W x H x D) 36 x 90 x 70 mm |
| Disconnection characteristic |
N/A |
| Flush-mounted installation |
true |
| Frequency |
N/A |
| Height |
90mm |
| Leakage current type |
F |
| Misc Attribute 1 |
ECPD 1+N |
| Misc Attribute 2 |
5TY1 |
| Model |
1-phase |
| Number of pins |
2 |
| Number of poles (total) |
2 |
| Number of protected poles |
N/A |
| Overvoltage category |
N/A |
| Pollution degree |
2 |
| Power loss |
N/A |
| Rated current |
6A |
| Rated fault current |
0.03A |
| Rated impulse withstand voltage Uimp |
4kV |
| Rated insulation voltage Ui |
250V |
| Rated short-circuit breaking capacity according to EN 61009 |
75kA |
| Rated short-circuit breaking capacity according to IEC 60947-2 |
N/A |
| Rated short-circuit breaking capacity Icn according to EN 61009-1 |
75kA |
| Rated voltage |
230V |
| Surge current capacity |
N/A |
| Switch-off Capacity |
6A |
| Voltage Rating |
230V |
| Voltage type |
AC |
| Width |
36mm |
| Width in number of modular spacings |
2 |
| With interlocking device |
true |
