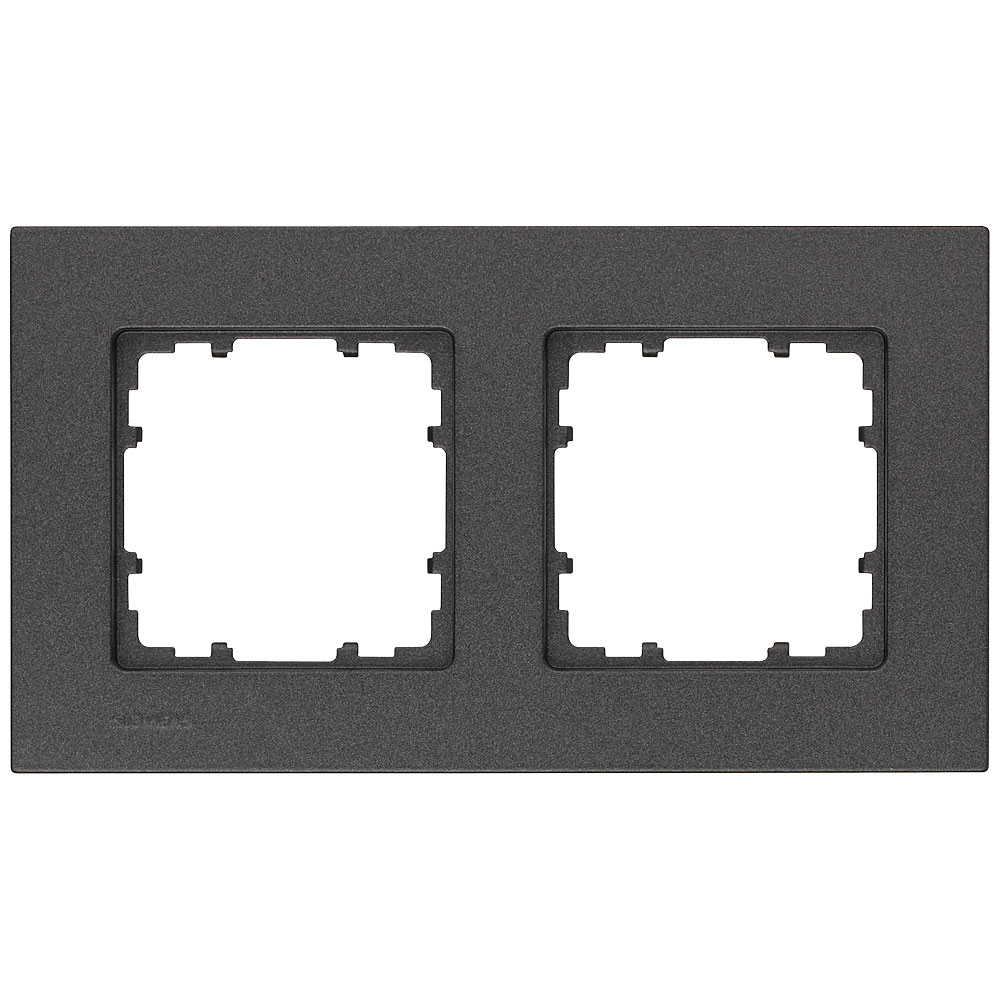

Siemens 5TG11122 Delta miro frame 2-way carbon metallic 161x90mm

The Siemens 2x Frame Delta Carbon 5TG11122 is a decorative frame designed for the Switch product range, featuring a sleek and stylish glass cover frame. This double frame allows for easy installation and combination with other frames to create a large or small combination, enhancing interior aesthetics. It is typically used in homes or offices to provide a modern and elegant finish to light switches or electrical fittings.

Type	Switch product range
Anti-bacterial treatment	false
Built-in height	N/A
Built-in width	N/A
Colour	Carbon
Degree of protection (IP)	IP20
Depth	N/A
Diameter bore hole (opening)	68mm
Flush-mounted installation	true
Halogen free	TRUE
Height	161mm
Impact strength	> IK10
IP Rating	IP20
Label space/information surface	FALSE
Length	161mm
Material	Wood
Material quality	Other
Misc Attribute	2-way frame
Mounting Direction	Horizontal and vertical
Number of device inserts horizontal	N/A
Number of device inserts vertical	N/A
Number of modules horizontal (module system)	2
Number of modules vertical (module system)	2
Number of units	2
Package depth	90mm
Package height	160mm
Package width	8mm
Quantity per pack	1 pc(s)
RAL-number (similar)	7016
Similar RAL	7016
Size/ Dimensions	(L x W) 161 mm x 90 mm
Suitable for built-in installation	FALSE
Suitable for subfloor installation duct box	FALSE
Suitable for wall duct	FALSE
Surface finishing	Glossy
Surface protection	Other
Switch type component	Frame
Transparent	FALSE
Type of fastening	Clamp mounting
Type series	Delta
Weight	32g
Width	90mm
With hinged lid	FALSE
With mounting grid	N/A
