Siemens 5SY41167 5SY Series Circuit Breaker 16A 230/400V 10kA 1-pole D

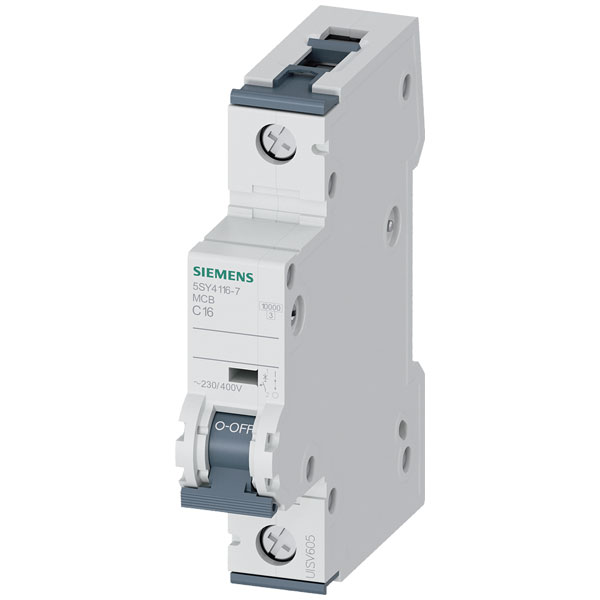

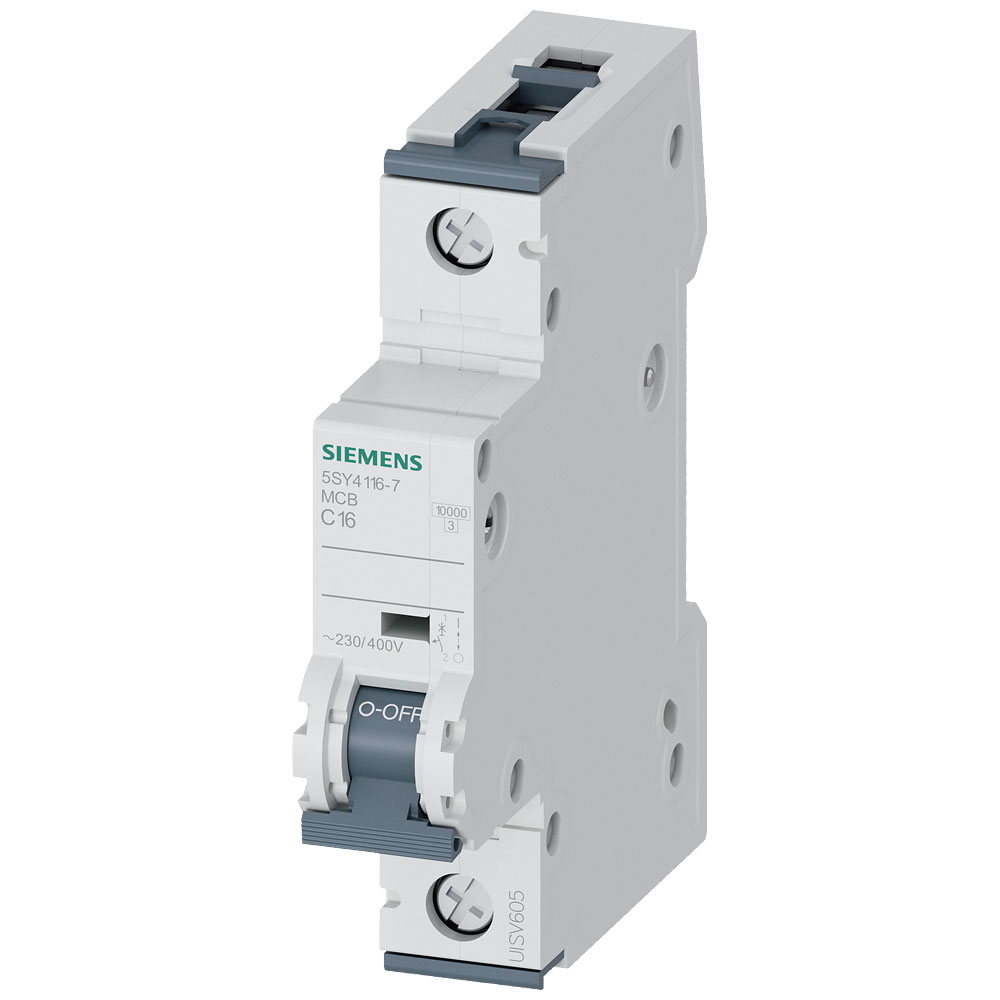

Image Representative of Range

Siemens 5SY41167 5SY Series Circuit Breaker 16A 230/400V 10kA 1-pole D

Siemens
Order Code:

07-0497

Brand: Siemens MPN: 5SY41167 EAN-13: 4001869181394
Qty Unit Price (Ex VAT)
1+ £17.05
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
71 in stock, despatched in 4 working days

Siemens produces the 5SY41167 Circuit Breaker, which operates at 16 A and supports voltages of 230 V and 400 V. It is designed to provide reliable overcurrent protection in electrical installations. Typical applications include residential and commercial electrical systems.
Type Circuit breaker
Additional equipment possible TRUE
Built-in depth 70mm
Compatible with (details) SENTRON
Concurrently switching neutral conductor FALSE
Current limiting class 3
Degree of protection (IP) IP20
Depth 76mm
Dim (W x H x D) 18 x 90 x 76 mm
Factory colour Grey
Frequency 50-60MHz
Height 90mm
Nominal Current 16A
Nominal current - rounded value 16A
Number of Poles 1
Number of poles (total) 1
Number of protected poles 1
Operating Voltage 440V
Overvoltage category 3
Pollution degree 3
Rated Current 16A
Rated impulse withstand voltage Uimp 4
Rated insulation voltage Ui 440V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V 10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V 10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V 20kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V 20kA
Rated Voltage 400V
Release characteristic C
Release characteristics C
Switch-off capacity 5kA
Voltage type AC
Width 18mm
Width in number of modular spacings 1
