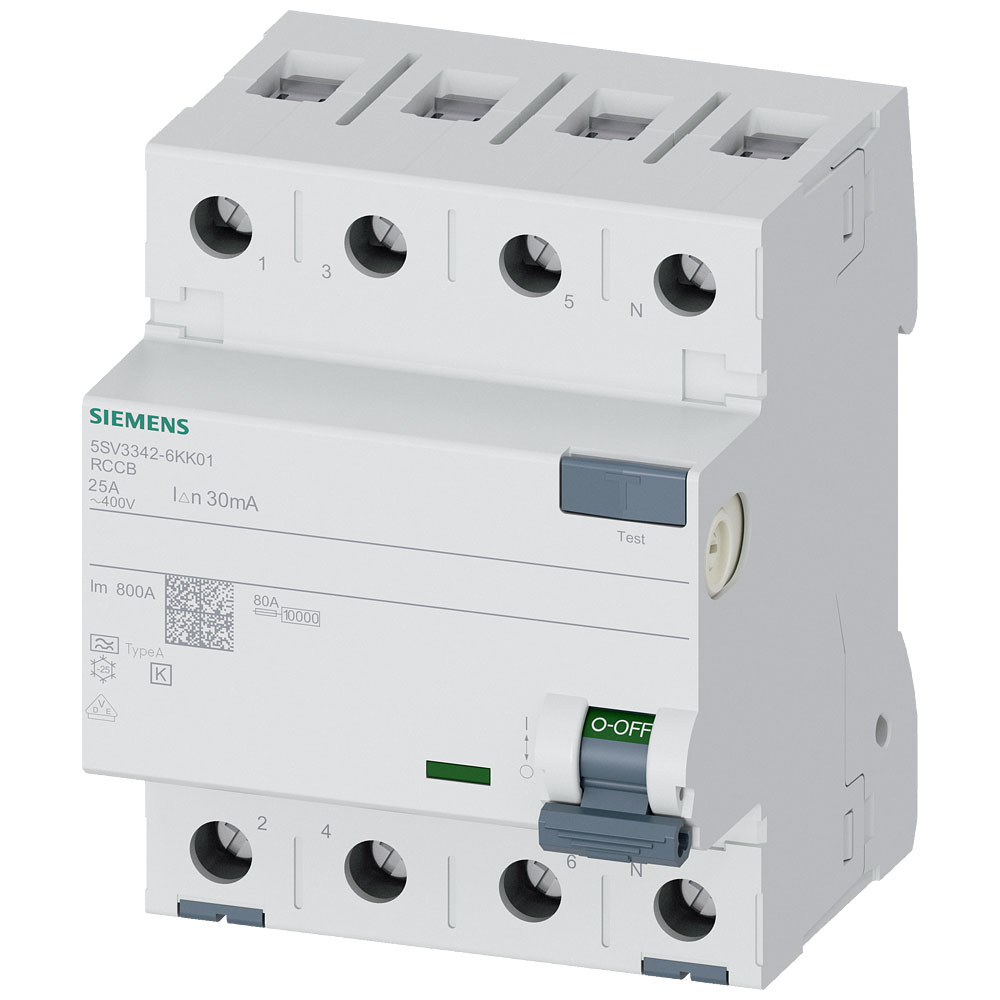

Siemens 5SV33426KK01 Circuit Breaker RCCB 4-pin 25A 0.03A 400V type A

The Siemens 5SV3342-6KK01 RCCB is a residual-current circuit breaker designed with four pins, a current rating of 25 A, and sensitivity of 0.03 A for use with 400 V systems. This device provides essential protection against electrical leakage and faults, making it ideal for safeguarding residential and commercial electrical installations. Typical applications include use in distribution boards to enhance electrical safety by preventing electrical shock and fire hazards.

Type	RCCB
Additional equipment possible	TRUE
Built-in depth	70mm
Degree of protection (IP)	IP20
Depth	70mm
Differential current rating	0.03A
Dim	(W x H x D) 72 x 90 x 70 mm
Frequency	50 Hz
Height	90mm
Leakage current type	A
Mounting Method	DIN rail
Nominal Current	25A
Nominal current - rounded value	25A
Nominal Voltage	400V
Number of Pins	4
Number of Poles	4
Rated Current	25A
Rated fault current	0.03A
Rated Voltage	400V
Selective protection	FALSE
Short-circuit breaking capacity (Icw)	10kA
Short-time delayed tripping	TRUE
Surge current capacity	3kA
Switch-off capacity	0.8kA
Voltage type	AC
Width	72mm
Width in number of modular spacings	4
With interlocking device	TRUE
