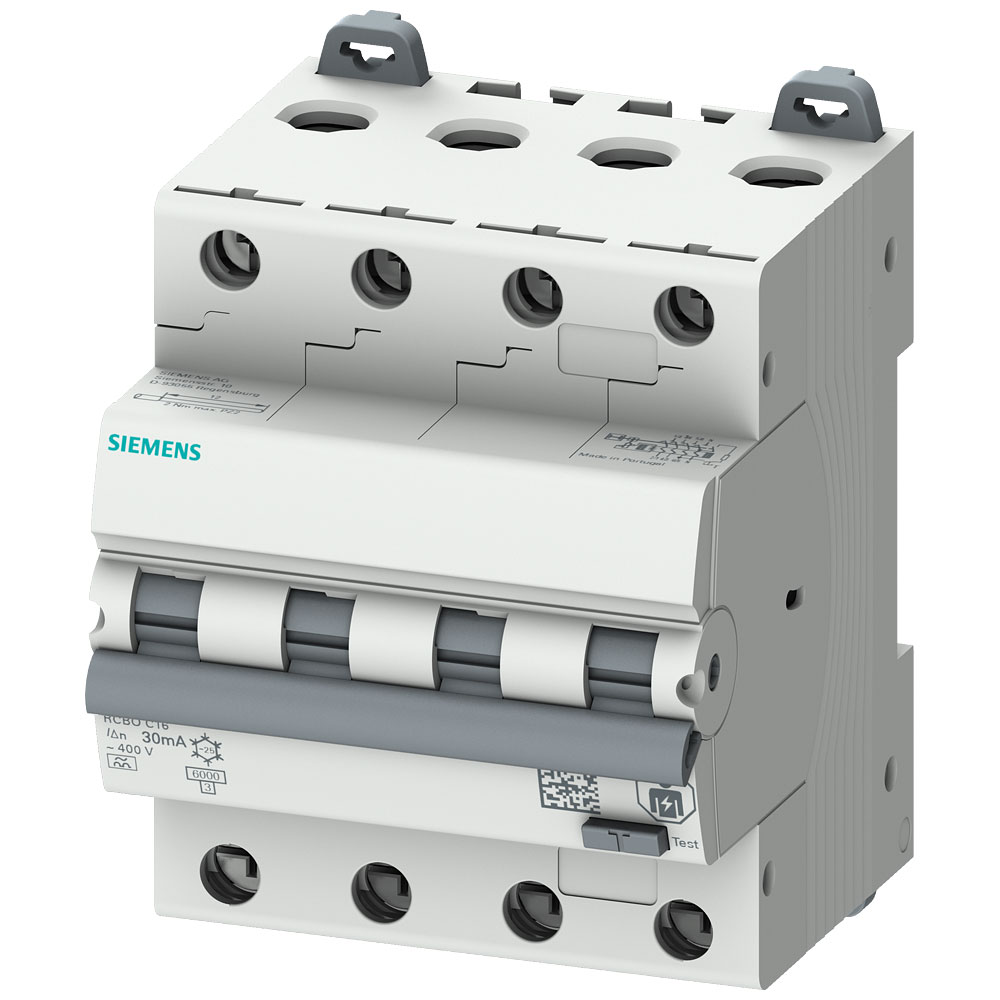

Siemens 5SU13467FP16 RCBO 16A 4P type A 0.03A FI/LS Switch 6kA C-Char

Siemens 5SU1346-7FP16 is an RCBO designed for safety and reliability. It features a 16 A fuse size with 4-pin configuration and a residual current rating of 0.03 A. Typically used in residential and commercial electrical installations for circuit protection and leakage detection.

Type	RCBO
Current Rating	16A
No. of Poles	4
Actuator Type	Toggle
Tripping Characteristics	C
Ambient temperature during operating	N/A
Anti-nuisance tripping version	true
Built-in depth	70mm
Concurrently switching neutral conductor	TRUE
Connectable conductor cross section multi-wired	1 - 35mm²
Connectable conductor cross section solid-core	1 - 35mm²
Current limiting class	3
Current Ratng	0.03A
Degree of protection (IP)	IP20
Depth	72mm
Differential current rating	0.03A
Dim	(W x H x D) 72 x 85 x 72 mm
Disconnection characteristic	Undelayed
Flush-mounted installation	true
Frequency	N/A
Fuse Size	3
Height	85mm
Insulation class	III
Leakage current type	A
Misc Attribute	without hesitation
Number of pins	4
Number of poles (total)	4
Number of protected poles	4
Overvoltage category	2
Pollution degree	3
Power loss	N/A
Rated current	16A
Rated fault current	0.03A
Rated impulse withstand voltage Uimp	4
Rated insulation voltage Ui	500V
Rated short-circuit breaking capacity according to EN 61009	6
Rated short-circuit breaking capacity according to IEC 60947-2	6kA
Rated short-circuit breaking capacity Icn according to EN 61009-1	6
Rated voltage	400V
Surge current capacity	0.25kA
Voltage Rating	400V
Voltage type	AC
Width	72mm
Width in number of modular spacings	4
With interlocking device	true
