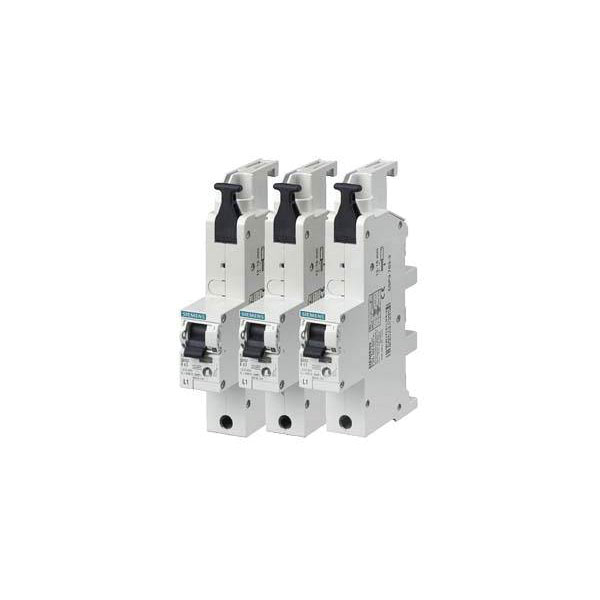

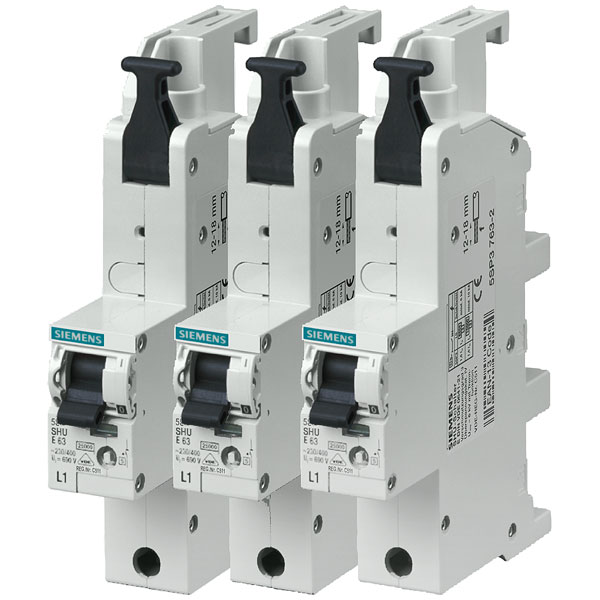

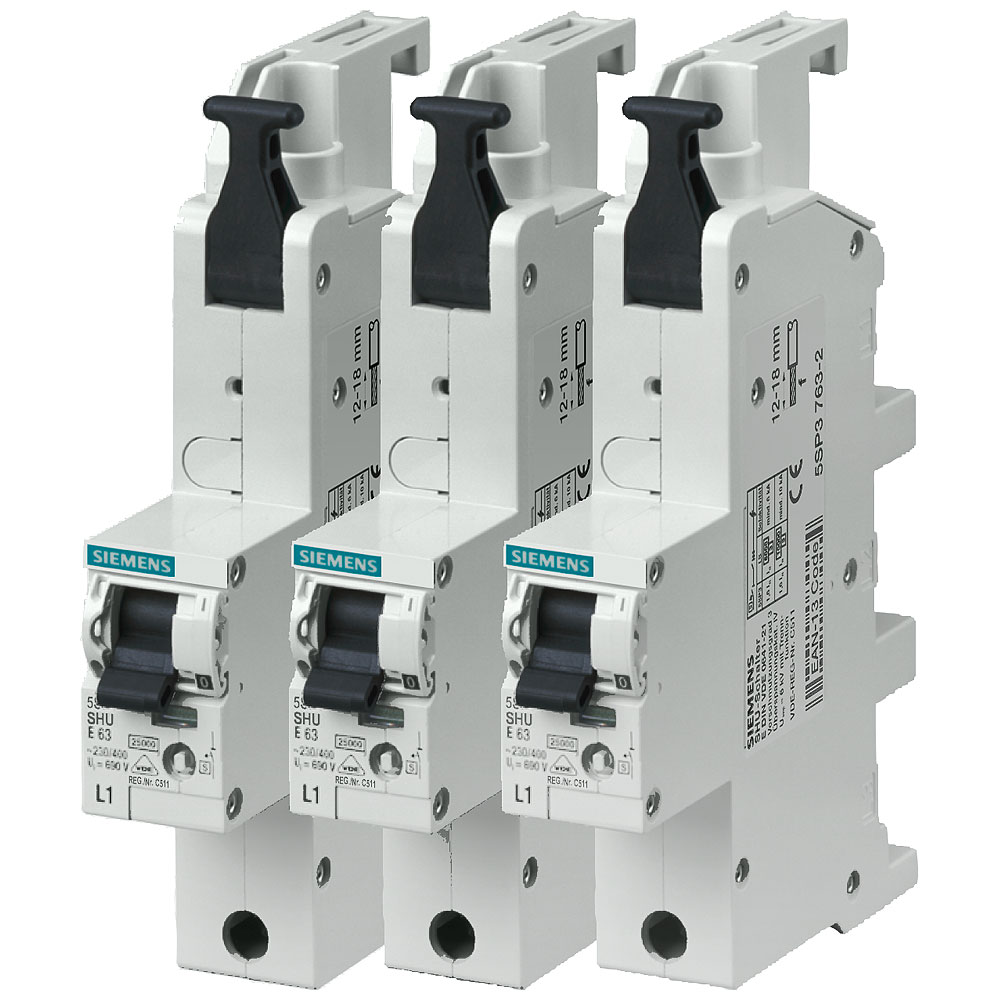

Siemens 5SP37502 RCCB main Circuit Breaker 50A 230/400V 1-pole

The Siemens 5SP37502 Main RCCB is a residual current circuit breaker designed for a current of 50 A and voltages of 230 V or 400 V. It primarily offers protection against electrical shock and fire hazards by detecting leakage currents. Typical applications include residential, commercial, and industrial electrical systems where safety is a priority.

Type	Main RCCB
Current Rating	50A
Voltage Rating - AC	400V AC
No. of Poles	1
Tripping Characteristics	E
Compatible with (details)	SENTRON
Concurrently switching neutral conductor	false
Construction size according to DIN 43880	N/A
Current Ratng	50A
Degree of protection (IP)	N/A
Depth	89.5mm
Dim	(W x H x D) 27 x 151.3 x 89.5 mm
Factory colour	Grey
Frequency	50Hz
Height	151.3mm
Mounting method	Busbar
Number of pins	1
Number of Poles	1
Overvoltage category	N/A
Pollution degree	3
Rated current	50A
Rated insulation voltage Ui	N/A
Rated surge voltage invariability	6kV
Rated switching capacity	25kA
Rated voltage	230V
Voltage Rating	440V
Width	27mm
