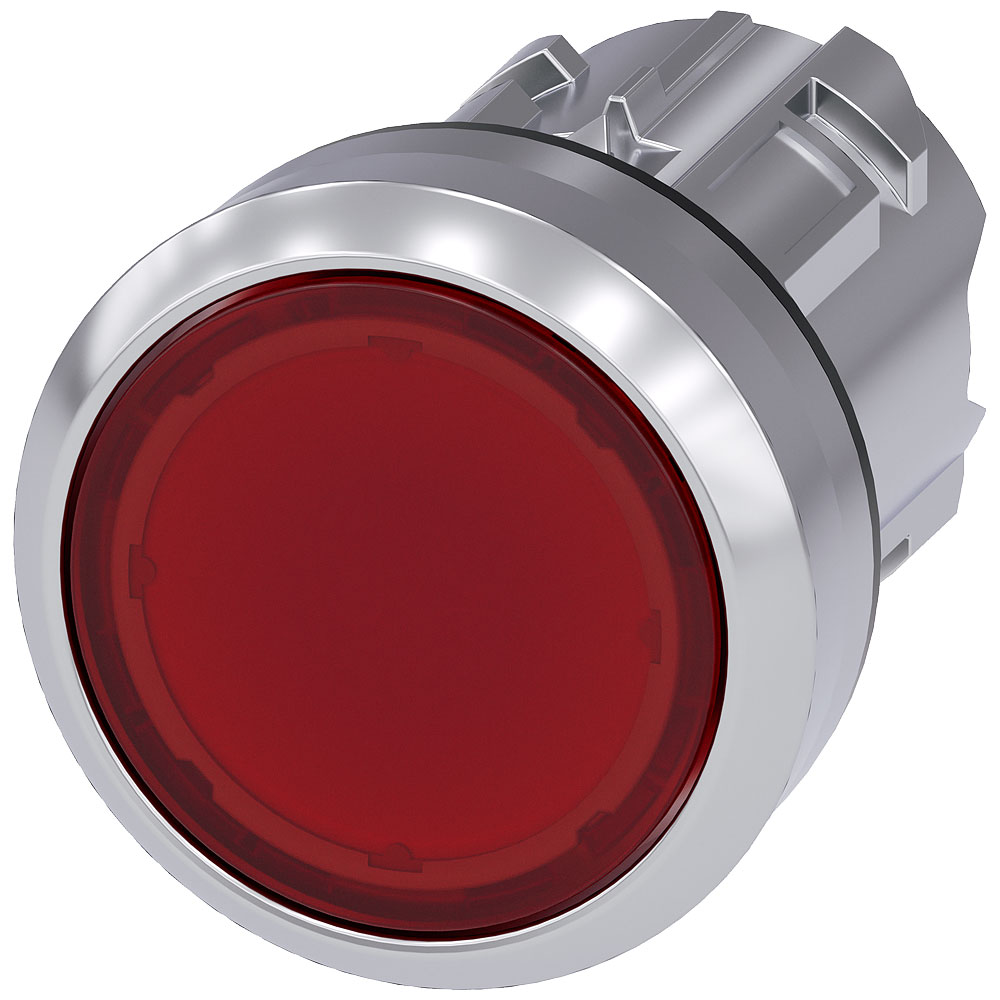

Siemens 3SU10510AB200AA0 SIRIUS ACT illuminated pushbutton red momentary

Siemens manufactures the 3SU1051-0AB20-0AA0 illuminated push button with a glossy red steel front ring, perfect for enhancing modern control panels. This versatile switch offers a reliable user interface for machinery and industrial equipment. It's commonly used in automation systems and electrical control circuits.

Switch Function	momentary
Type	Illuminated push button
Colour	Red
Colour button	Red
Colour front ring	Chrome
Construction type lens	Round
Degree of protection (IP), front side	Other
Degree of protection (NEMA), front side	Other
Dim	(W x H) 29.5 mm x 29.5 mm
Durability	3000000
Factory colour	Red
Height	29.5mm
Height opening	N/A
Hole Diameter	22.3mm
Labelled	FALSE
Lighting Type	None
Material front ring	Metal
Max. temperature	+70°C
Min. temperature	-25°C
Misc Attribute	3SU1051-0AB20-0AA0
Number of command positions	1
Print motif	None
Recess Diameter	22mm
Shape	Round
Spring-return	FALSE
Suitable for lighting	TRUE
Switching function latching	FALSE
Type of button	N/A
Weight	39g
Width	29.5mm
Width opening	N/A
With front ring	TRUE
With protective cover	FALSE
