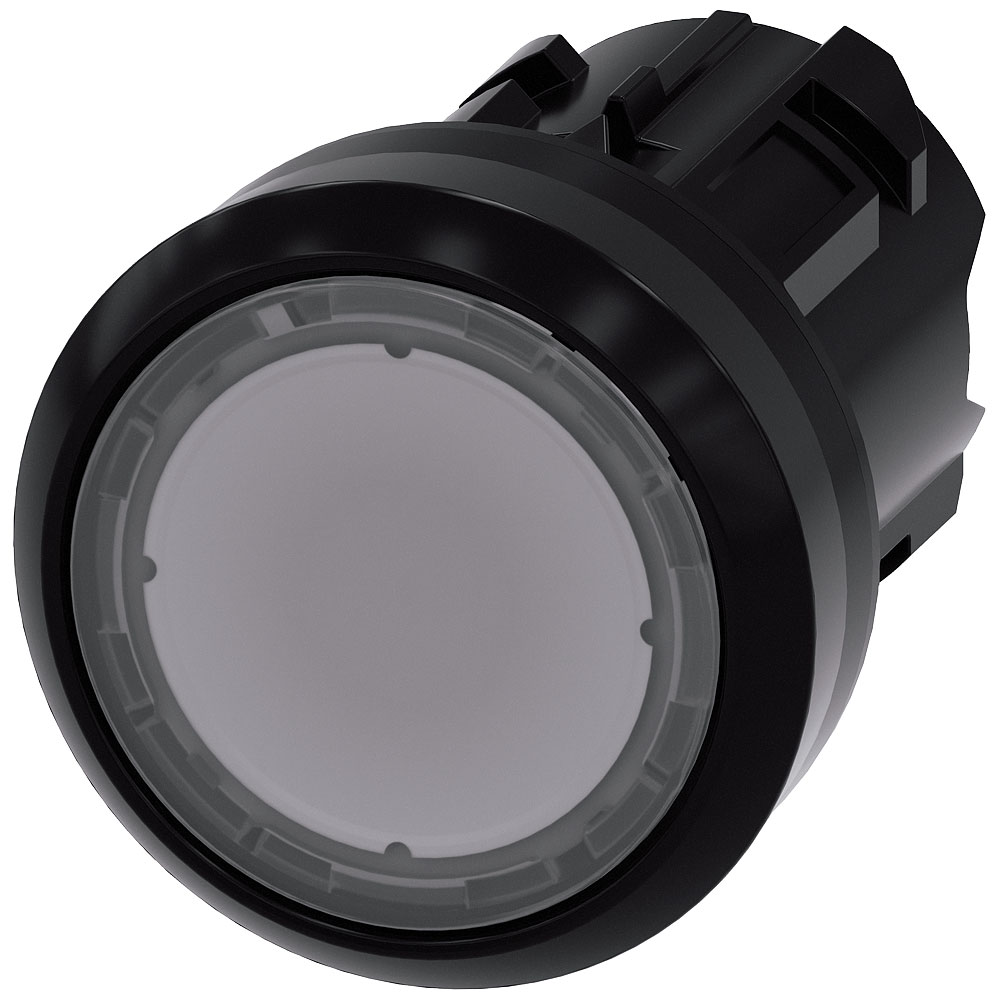

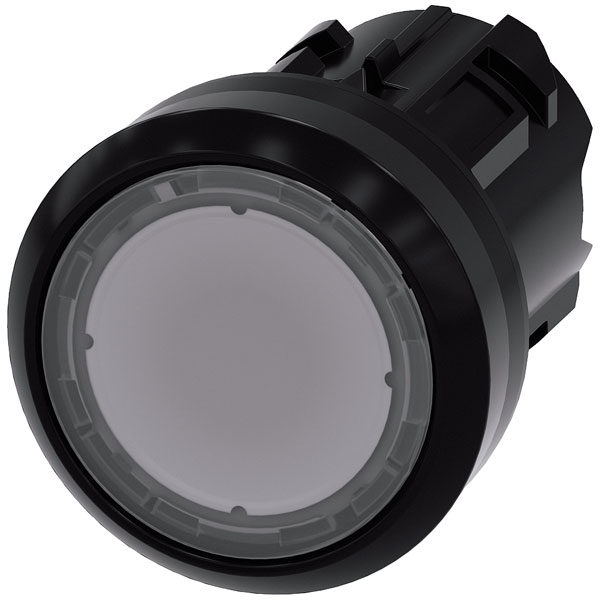

Siemens 3SU10010AB700AA0 SIRIUS ACT illuminated pushbutton 22mm clear

The Siemens illuminated push button, model 3SU10010AB700AA0, features a clear PVC front ring and is designed for easy operation in control and automation systems. This durable, easily recognisable switch is ideal for use in industrial environments where clear visual feedback is essential. Typical applications include machinery control panels and industrial automation systems.

Switch Function	momentary
Type	Illuminated push button
Colour	Clear
Colour button	N/A
Colour front ring	Black
Construction type lens	Round
Degree of protection (IP), front side	Other
Degree of protection (NEMA), front side	Other
Dim	(W x H) 29.5 mm x 29.5 mm
Durability	3000000
Factory colour	Clear
Height	29.5mm
Height opening	N/A
Hole Diameter	22.3mm
Labelled	FALSE
Lighting Type	Area illumination
Material front ring	Plastic
Max. temperature	+70°C
Min. temperature	-25°C
Misc Attribute	3SU1001-0AB70-0AA0
Number of command positions	1
Print motif	None
Recess Diameter	22mm
Shape	Round
Spring-return	FALSE
Suitable for lighting	TRUE
Switching function latching	FALSE
Type of button	N/A
Weight	18g
Width	29.5mm
Width opening	N/A
With front ring	TRUE
With protective cover	FALSE
