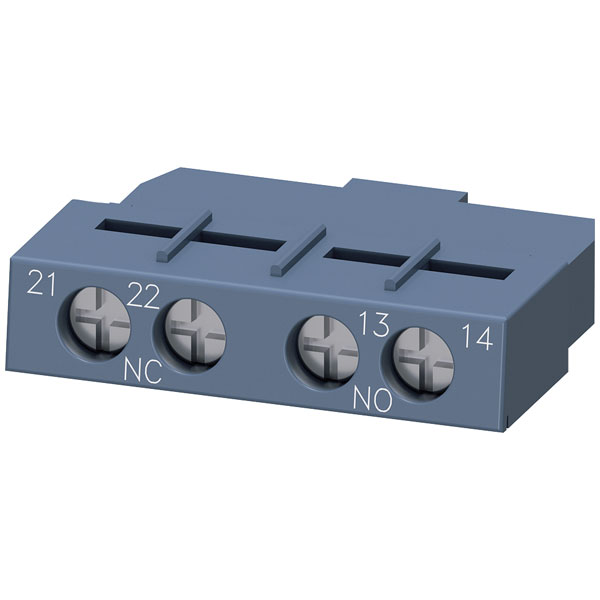

Siemens 3RV2901-1E Auxiliary Switch module 45x12x17mm 1pc

The Siemens 3RV2901-1E Auxiliary Switch Module is a compact device with dimensions of 45 x 12 x 17 mm, designed to enhance electrical contactor functions. It is typically used in industrial settings to provide additional contact points for control and signalling circuits. As an auxiliary contactor, it is essential for improving the control capabilities of main contactor units.

Type	Auxiliary switch module
Colour	Multicolour
Depth	17mm
Dim	(W x H x D) 45 x 12 x 17 mm
Height	12mm
IP Rating	IP20
Lamp holder	N/A
Maximum Temperature	+60°C
Min. temperature	-20°C
Misc Attribute	3RV2901-1E
Model	N/A
Mounting method	N/A
Mounting Type	Push-fit
Number of contacts as change-over contact	0
Number of contacts as normally closed contact	1
Number of contacts as normally open contact	1
Number of fault-signal switches	0
Rated operation current Ie at AC-15, 230 V	0.5A
Type of electric connection	N/A
Weight	0.02
Width	45mm
